SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 36.0" (91 cm) |
| Height of Cabinet | 36.0" (91 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 24.0" (61 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Door | White |
| Cabinet | White |
| US Electrical Safety | CSA |
| Voltage/Frequency | 220 V AC/60 Hz |
| Weight | 150.0 lbs. (68 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101058184 |
|
Electric Range
|
|
| Oven Capacity | 2.92 cu.ft. (83 L) |
| Cooktop Surface | Porcelain |
| Element Type | Coils |
| Number of Elements | 4 |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 675.0 |
| Element #2 Size | 6.0" (15 cm) |
| Element #2 Wattage | 675.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 675.0 |
| Element #4 Size | 8.0" (20 cm) |
| Element #4 Wattage | 950.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Cleaning Type | Manual |
| Oven Rack Qty | 2 |
| Oven Interior Height | 14.0" (36 cm) |
| Oven Interior Width | 19.0" (48 cm) |
| Oven Interior Depth | 19.0" (48 cm) |
| Broiler Location | Inside Oven |
AVAILABLE UPGRADES
| Exterior | ||
|---|---|---|
|
FEATURES
Designed and constructed domestically
Apartment-sized width offers all the functionality you need in a smaller footprint
Shallower fit is ideal for L-shaped and galley kitchens
Low backguard trimmed in stainless steel makes it easier to integrate your own backsplash design
Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
Three standard 6" and one large 8" element
Each element includes a removable chrome pan for easier cleaning
Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
Smart design limits the depth and protects adjacent cabinets
Solid construction built to hold up to everyday use
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
Control panel includes an 'on' light for the oven and burners for added safety when using the range
Allows for easier cleaning as needed
Two-piece porcelain broiler tray with grease well
Included for user installation to help prevent tipping
Compatible with standard 40 amp 3 or 4-wire range cords
Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
DESCRIPTION

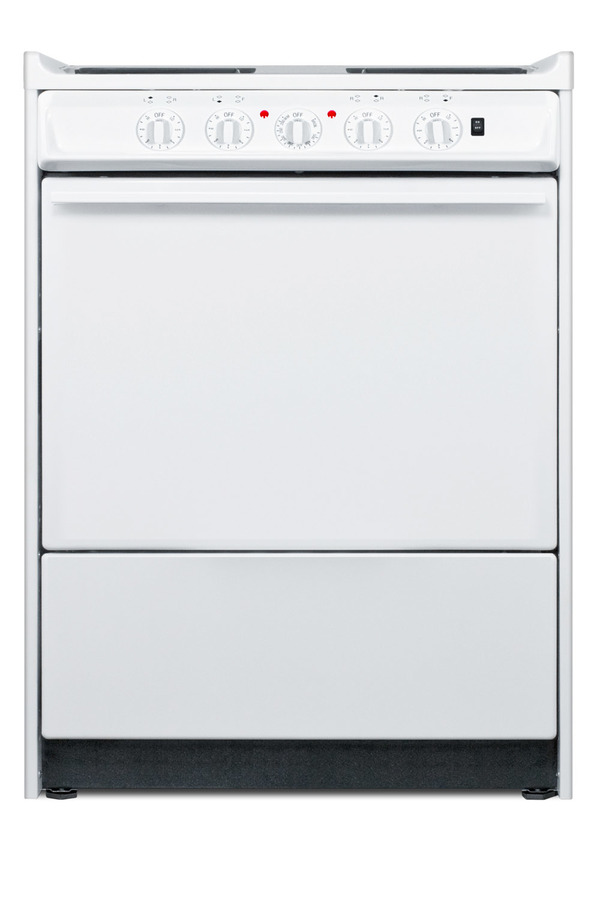

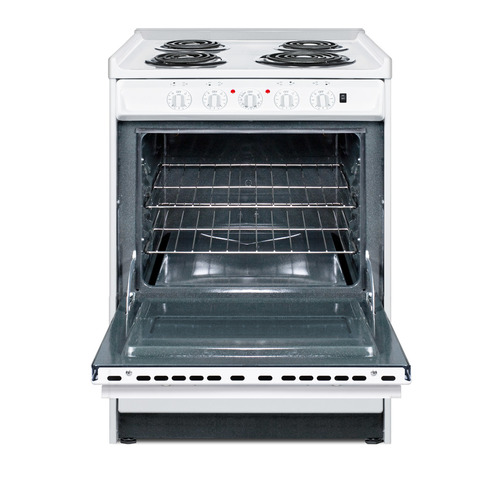

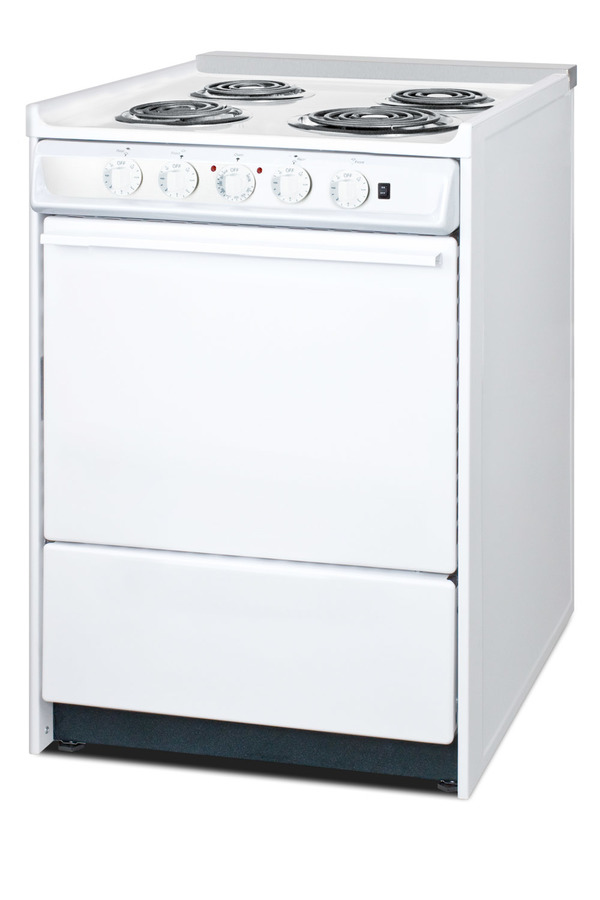

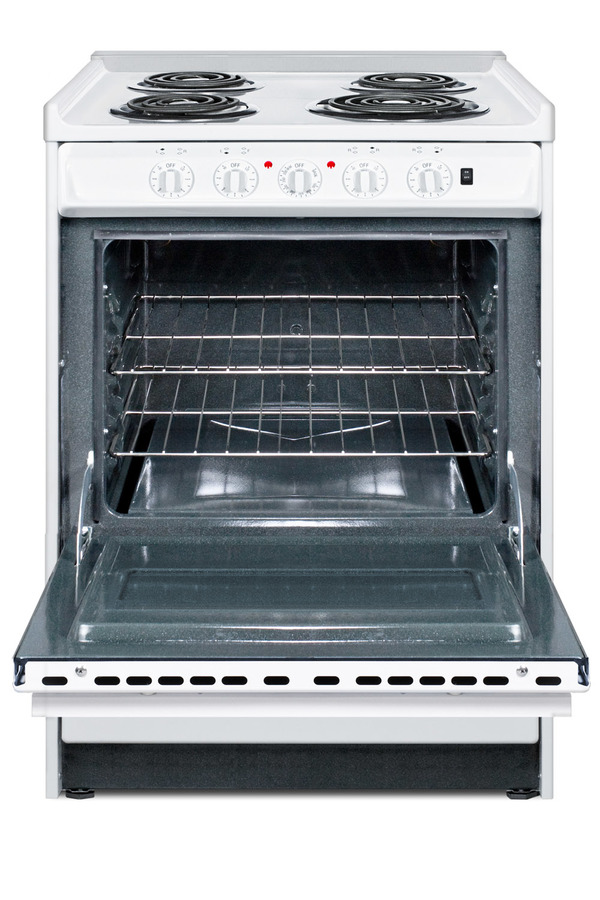

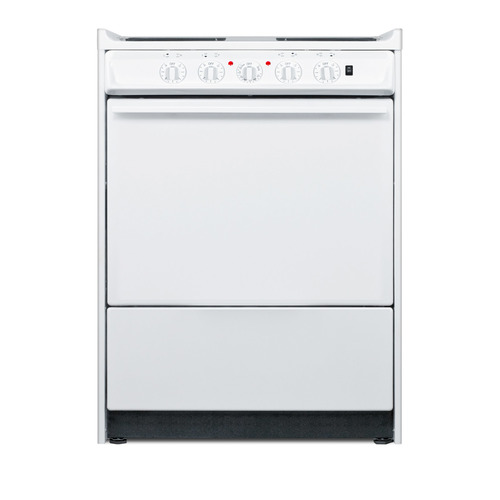

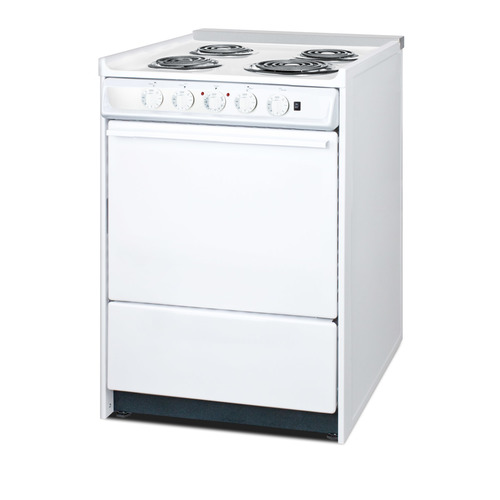

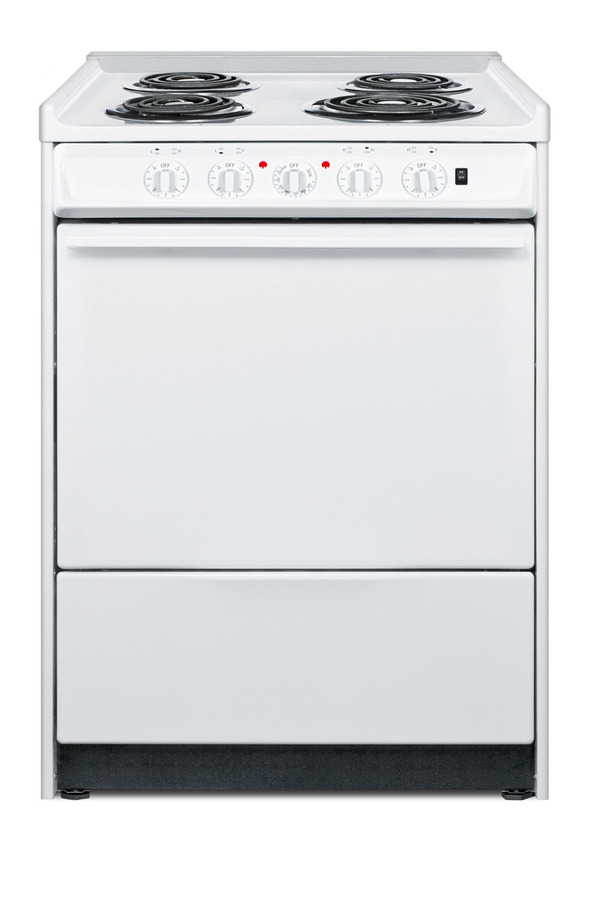

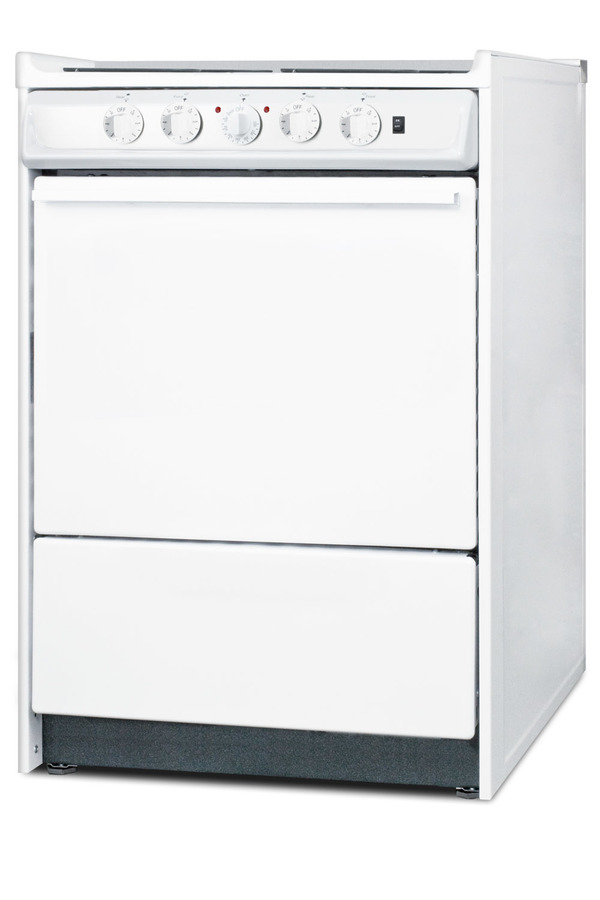

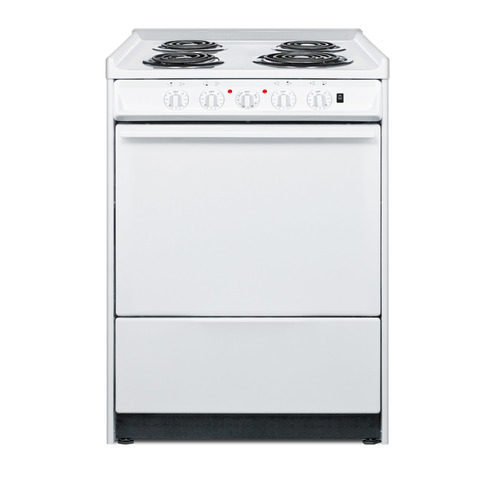

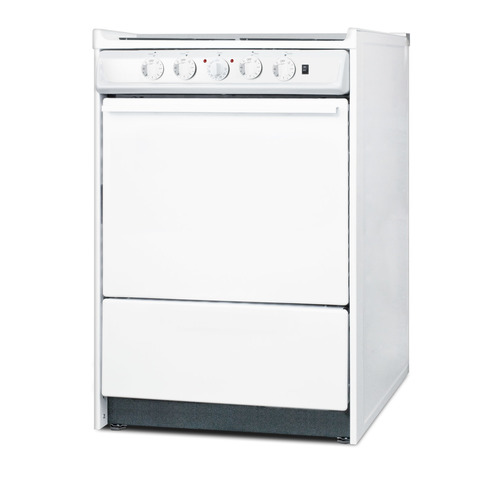

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The WEM610R is an apartment-sized 220V electric range sized at just 24" wide, with a generous 2.92 cu.ft oven interior that can accommodate large trays. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines. The WEM610R comes in a classic white finish, with a low backguard trimmed in stainless steel for a slide-in look. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 30", and 36" wide fits.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
