30" Wide Gas Range
Next day shipping; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss
(112cm H x 76cm W x 61cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 44.0" (112 cm) |
| Height of Cabinet | 44.0" (112 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 30.0" (76 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Door | Black |
| Cabinet | White |
| Weight | 170.0 lbs. (77 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101019642 |
|
Gas Range
|
|
| Ignition | Spark |
| LP Convertible | With Kit LP Accessory |
| Oven Capacity | 3.7 cu.ft |
| Cooktop Surface | Porcelain |
| Burner Type | Open |
| Number of Burners | 4 |
| Burner #1 BTU | 9000.0 |
| Burner #2 BTU | 9000.0 |
| Burner #3 BTU | 9000.0 |
| Burner #4 BTU | 9000.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Oven Light | Yes |
| Cooking Timer | Yes |
| Backguard | Yes |
| Backguard Display | Yes |
| Oven Window | Yes |
| Oven Interior Height | 14.0" (36 cm) |
| Oven Interior Width | 24.0" (61 cm) |
| Oven Interior Depth | 19.0" (48 cm) |
| Broiler Location | Below Oven |
| Broiler Door | White |
| Oven Door | Black Glass |
FEATURES
Designed and constructed domestically
Standard size ideal for most kitchens
Shallower fit is ideal for L-shaped and galley kitchens
9000 BTU burners with built-in enamel grates to meet most cooking needs
Set for use with natural gas connection. To convert for propane use, add Kit LP
Spark ignition system with a pre-installed 115V 3-prong cord
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
Stylish look with solid construction
Cabinet, broiler door, and surface feature a classic white finish
8" high backguard helps to protect your walls from spills and splashes
Backguard includes time readout
Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust
Smart design limits the depth and protects adjacent cabinets

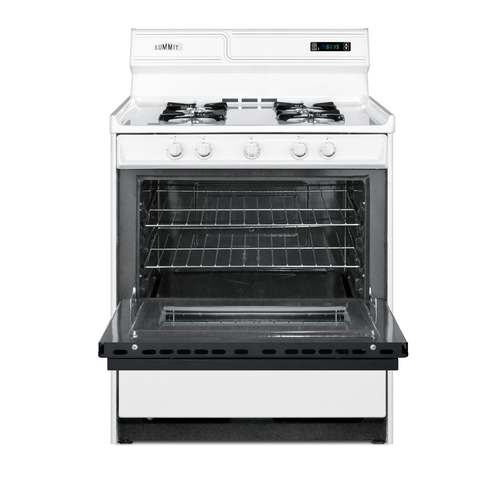

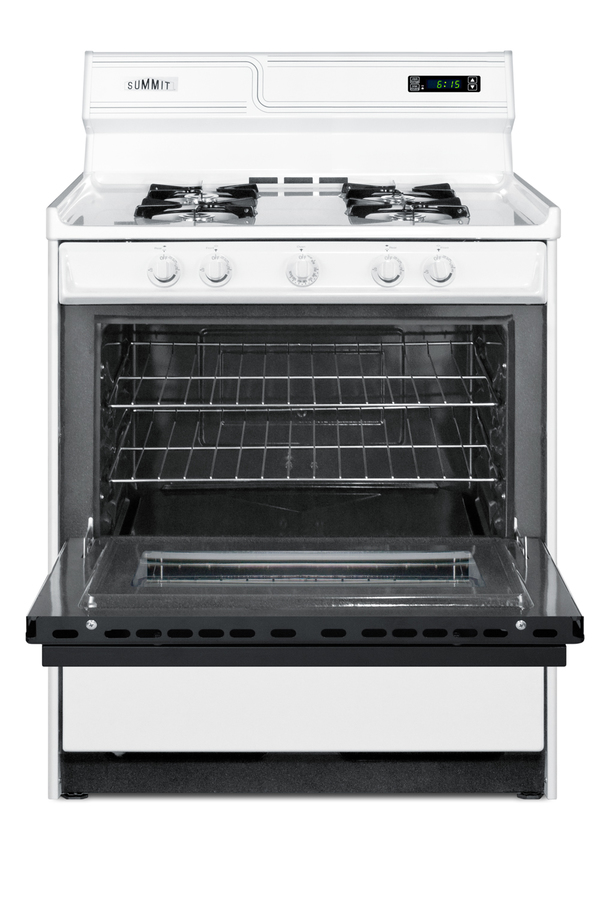

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Lower drop-down compartment for separate broiling with even heat distribution
Lasting durability with solid construction inside and out designed to hold up to everyday kitchen use
Allows for easier cleaning as needed
Two-piece porcelain broiler tray with grease well
Included for user installation to help prevent tipping
DESCRIPTION

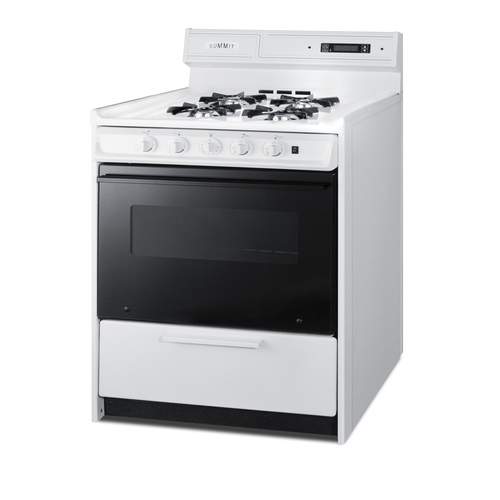

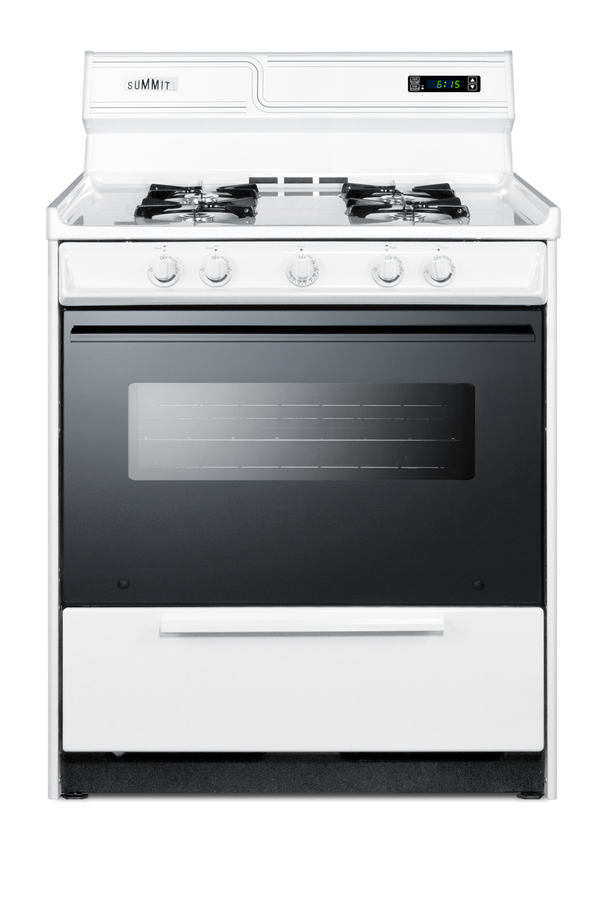

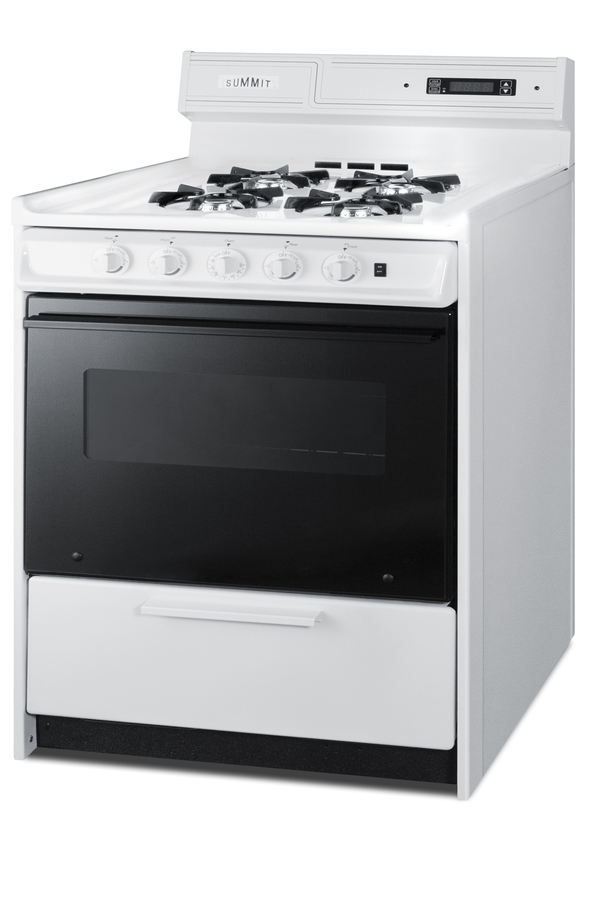

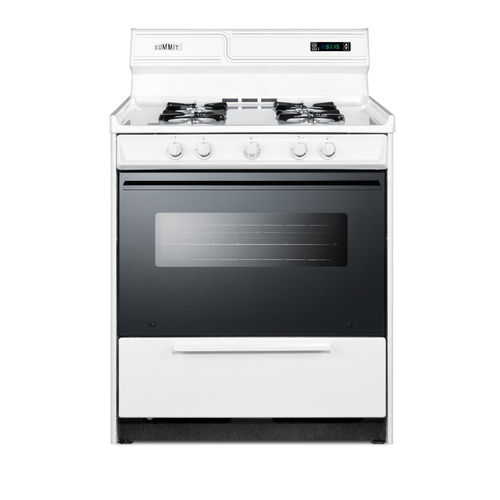

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The WNM2307DK is a gas range sized at 30" wide, with a generous 3.7 cu.ft oven interior that can accommodate large trays. Two adjustable oven racks are included. An oven window and on/off interior light allow you to easily keep watch over your cooking. The broiler is located below the oven in a drop-down compartment. Four open 9000 BTU gas burners accommodate most of your stovetop heating needs, with upfront push-to-turn knobs that let you adjust your cooking without reaching over hot burners. This unit utilizes an electronic ignition system for added safety. The WNM2307DK comes with a white exterior and black glass door, with a high backguard that includes a digital clock and timer. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Constructed from porcelain and steel, the WNM2307DK offers lasting durability. We include an anti-tip bracket for added safety. With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 36" wide fits. This unit ships ready for natural gas connections. To use with propane, add the Kit LP.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
