24" Wide Built-In Outdoor All-Refrigerator, ADA Compliant

SKU: ADA77S

Made in the USA and approved to NSF-7 commercial standards

DISCONTINUED- REPLACED BY SPR7BOSSTADA

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

32.25" H x 23.63" W x 25.0" D
(82cm H x 60cm W x 64cm D)

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.63" (60 cm)
Depth	25.0" (64 cm)
Depth with Handle	27.63" (70 cm)
Depth with door at 90°	48.0" (122 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	2.3
Voltage/Frequency	115 V AC/60 Hz
Weight	143.0 lbs. (65 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101062099
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Height Adjustable	1
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Exterior
Interior Light	Yes
Dimensions
Interior Height	26.25" (67 cm)
Interior Width	21.0" (53 cm)
Interior Depth	18.0" (46 cm)
Compressor Step Height	5.0" (13 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	LHD - Left hand door swing Door reversal to left hand swing
CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish

Handle

TBC Copper Towel Bar Handle Upgrade Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection

ADA Compliant

Sized at 32" high (32.25" to hinge cap) for installation under lower ADA compliant counters with height guidelines

Approved for outdoor use

Weatherproof design rated safe for outdoor operation

Commercially listed

ETL-S listed to NSF-7 Standards for use in commercial establishments

304 grade stainless steel exterior

Complete stainless steel construction for easy durability in the outdoors

Built-in capable

Make the best use of space by installing your unit under the counter and flush with other cabinets

Automatic defrost

Reduced maintenance with auto defrost system

Ground Fault Circuit Interrupter

Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks

Professional towel bar handle

Curved towel bar style handle in brushed stainless steel is mounted horizontally for a modern look

Adjustable glass shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

White interior

Ideal for improving visibility in your outdoor kitchen

Interior light

Rocker switch lets you turn the light on and off as needed

Adjustable thermostat

Dial thermostat offers easy temperature management

Flat door liner

Maximizes interior storage depth, allowing the refrigerator to accept deeper trays

One piece interior liner

Seamless liner for easy cleanup

Fully finished cabinet

Allows the refrigerator to be used as a freestanding model

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Summit’s outdoor refrigeration collection includes commercial grade models made in the USA.

The ADA77S is an all-refrigerator sized at 32" high and just under 24" wide, with a front-breathing design to allow built-in installation under lower ADA compliant counters. The weatherproof design features a 304 grade stainless steel wrapped cabinet and user-reversible door, as well as a sealed back to protect the unit from the elements and an integrated Ground Fault Circuit Interrupter for added safety. The curved towel bar handle is mounted horizontally for modern style and a stainless steel kick plate completes the look.

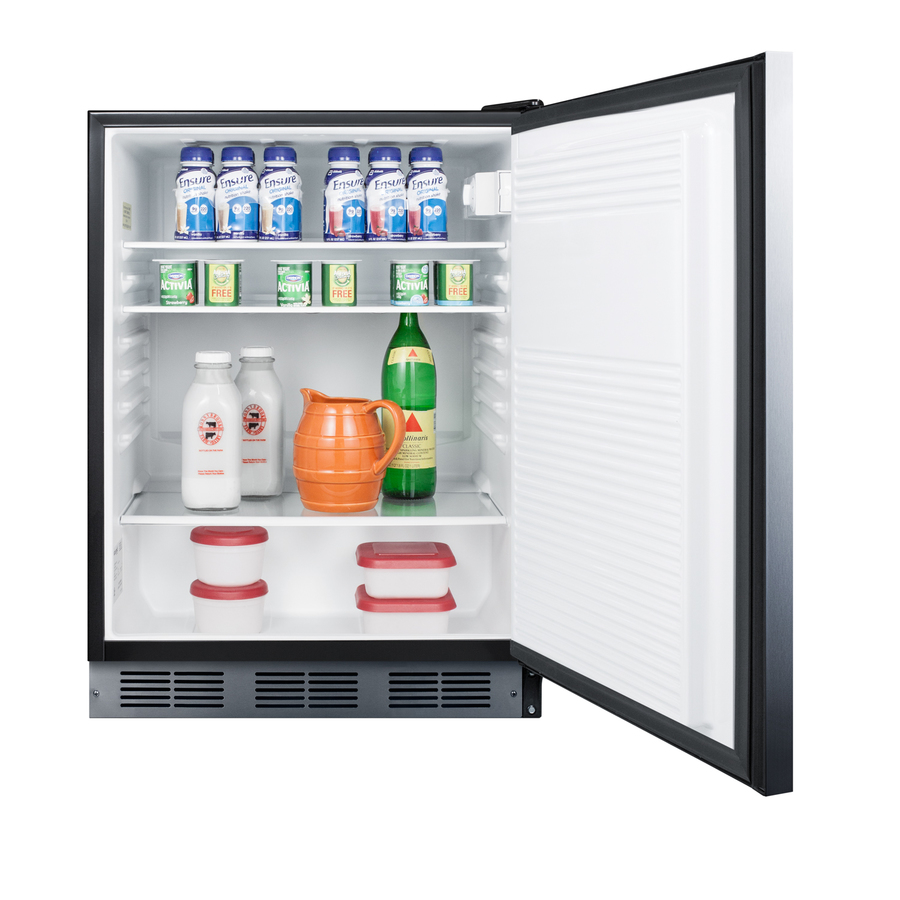

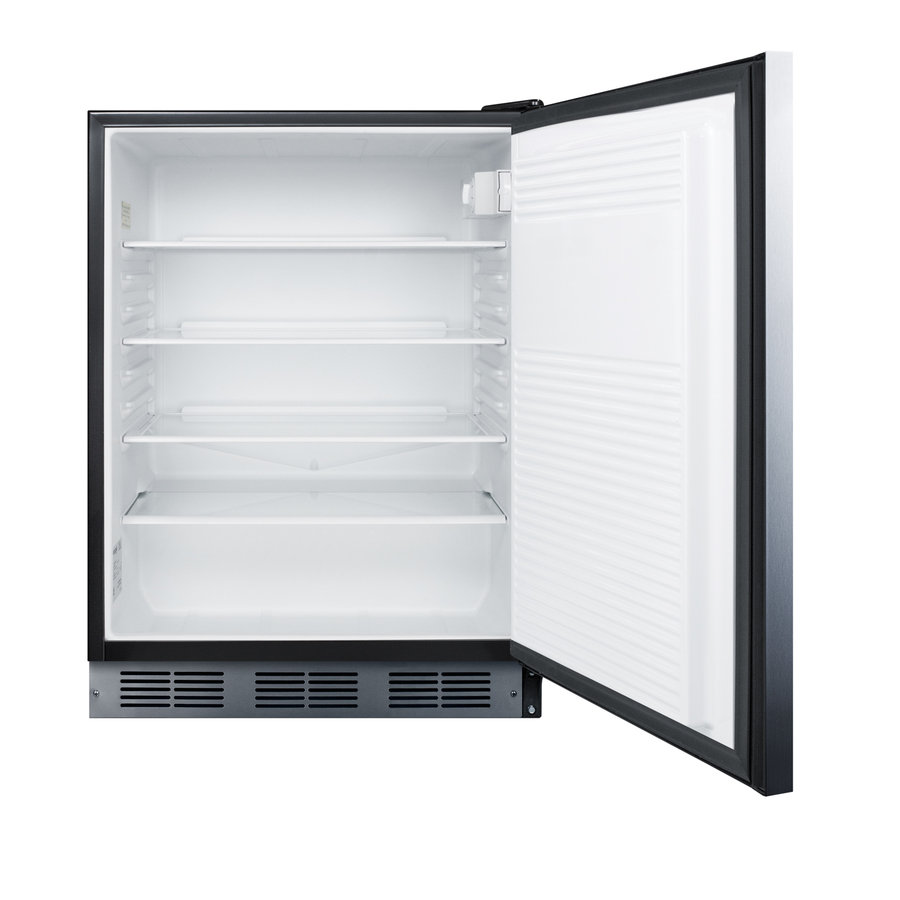

Inside, the ADA77S offers 5.5 cu.ft. of capacity. Adjustable glass shelves offer spill-proof storage and a flat door liner allows the interior to accept deeper trays. This model has a white interior finish for easier visibility, with interior lighting with an on/off switch located near the adjustable dial thermostat.

This model is ETL-S listed to NSF-7 commercial standards and can be used built-in or freestanding. Additional outdoor choices are available, including 15" wide sizes, beverage centers, freezers, and icemakers. Browse Summit's catalog for more options.

BROCHURE w/ DRAWINGS
ADA77S.pdf

TECHNICAL DRAWING (.dwg)
ADA77S_OUTDOOR_REF.__A-C_2010_.dwg

USE & CARE
BAR77S_ADA77S_BAR72G_ADA72G_BAR72GLH_ADA72GLH_User_Manual.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
