15 lb. Drain-Free Built-In Icemaker (Panel Not Included)

SKU: BIM26IF

Get long-lasting ice where and when it's needed + No drain required!

Estimated Time to Ship:

Next day shipping

Find a dealer

Door Swing:
RHD LHD

Color:

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

25.0" H x 14.88" W x 16.75" D
(64cm H x 38cm W x 43cm D)

Overview
Height of Cabinet	24.5" (62 cm)
Height to Hinge Cap	25.0" (64 cm)
Width	14.88" (38 cm)
Width with Door Open	15.13" (38 cm)
Depth	16.75" (43 cm)
Depth with door at 90°	32.25" (82 cm)
Defrost Type	Manual
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.2
Voltage/Frequency	115 V AC/60 Hz
Weight	50.0 lbs. (23 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101144801
Icemaker
Door Swing	RHD
Reversible	Factory Reversible
Height Adjustable	No
Daily Ice Production	15.0 lbs. (7 kg)
Ice Storage Capacity	12.0 lbs. (5 kg)
Ice Shape	Crescent
Size of Cube	7/8" x 7/8" x 2-3/8"
Number of Ice Cube Sizes	1
Refrigerant Type	R600a
Refrigerant Amount	1.69 oz.
High Side PSI	120.0
Low Side PSI	55.0
Interior Height	12.25" (31 cm)
Interior Width	11.0" (28 cm)
Interior Depth	12.25" (31 cm)
Level Legs	4

Exterior

LHD - Left hand door swing Door reversal to left hand swing

No-Drain 15" Wide Icemaker

Built-in or undercounter capable icemaker designed for kitchen islands, home bars, break rooms, health offices, RVs, and even boat kitchens.

Built-In capable

Make the best use of space by installing your icemaker under the counter

Large capacity

Produces 15 lbs of crescent-shaped ice and stores up to 12 lbs

Drain-free design

Convenient design allows more flexibility in positioning the unit

Manual defrost

Static cooling system helps to keep ice frozen for longer periods of time compared to other systems

Panel-ready door

Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 20 1/2" H x 14 15/16" H and at least 3/4" thick; maximum weight: 10 lbs.)

Sealed back

Space-saving design with easier cleanability

Standard water hookup

Operates with a standard 1/4” OD water supply line

Ice scoop included

Large ice scoop and holder included for your convenience

Lasting ice cube production

Crescent-shaped ice provides a harder and longer-lasting ice

Removable bin

Users can remove the ice bucket for fast and easy cleaning

Insulated storage bin

Ice stays solid longer in this cold-protected bin

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Summit combines convenience and luxury to craft the BIM26IF, a drain-free icemaker with a customizable door front to best complete your space.

Sized at just under 15" wide, the BIM26IF features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. Its petite 25" height makes this the optimal unit for use in kitchen islands, home bars, break rooms, RVs, and even boat kitchens.

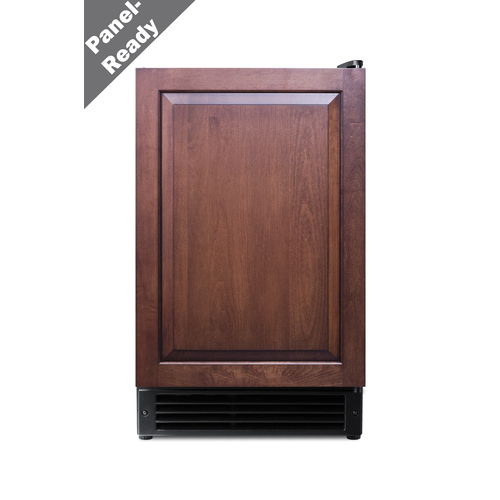

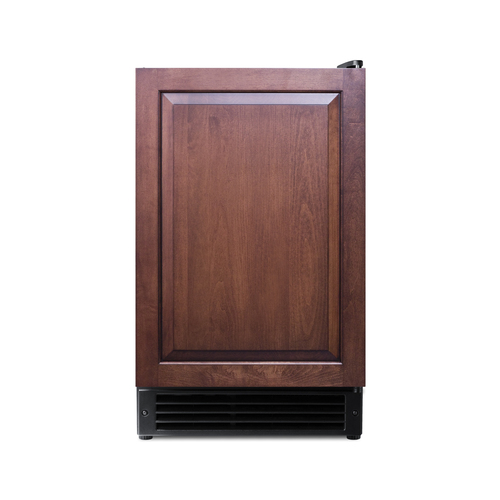

For a custom look, BIM26IF is designed to accept overlay panels (recommended panel size: 20 1/2" H x 14 15/16" W at 3/4" thickness). The door comes with an integrated stainless steel frame for easy installation that will blend into your space. Customers supply their own handle to match their design.

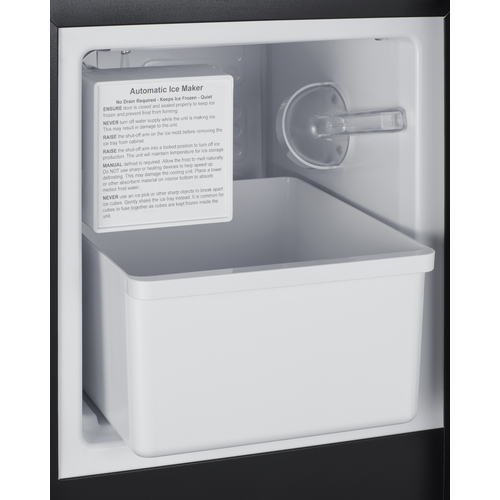

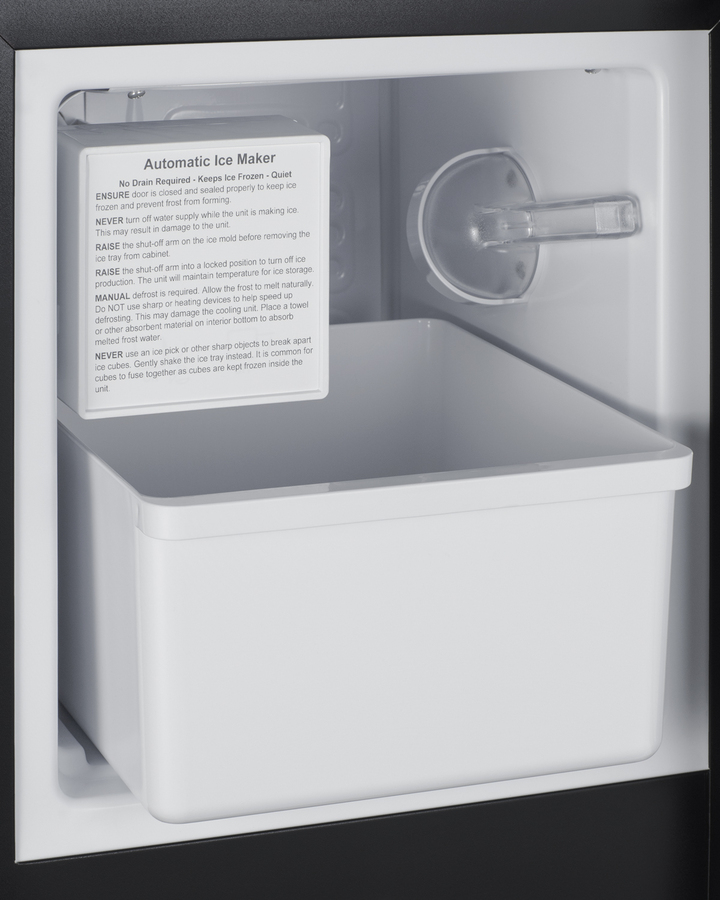

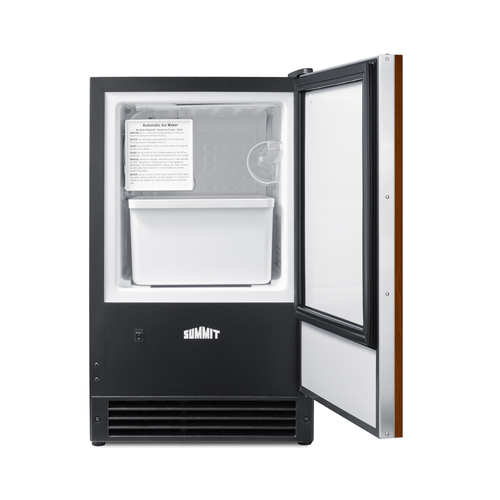

A look inside the BIM26IF shows it can produce 15 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop. With its large capacity, the BIM26 produces 15 lbs of crescent-shaped ice and stores up to 12 lbs.

With its stainless steel door, black cabinet, and low maintenance design, the BIM26IF is a great way to finish any undercounter kitchen or home bar space and allows you to maintain an entire supply of ice with less waste.

Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.

BROCHURE w/ DRAWINGS
BIM26IF.pdf

TECHNICAL DRAWING (.dwg)
BIM26IF.dwg

ASSEMBLY DRAWING
BIM26IF-Assembly.pdf

USE & CARE
BIM26H32_BIM26H34__BIM27OSADA_BIM271OS_BIM26_User_Manual_11-15-23.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
