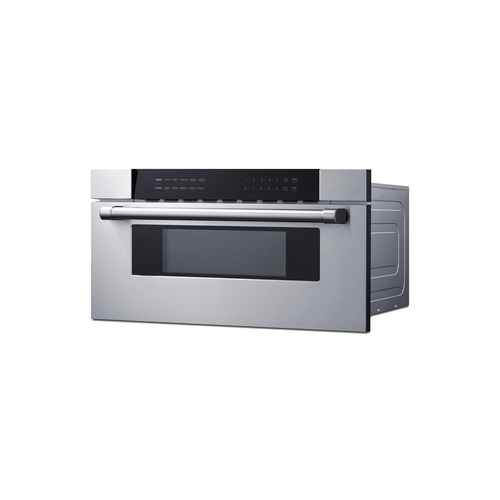

30" Wide Built-In Drawer Microwave
Next day shipping
(40cm H x 76cm W x 59cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 16.0" (41 cm) |
| Height of Cabinet | 15.88" (40 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.75" (76 cm) |
| Depth | 23.25" (59 cm) |
| Depth with Handle | 25.63" (65 cm) |
| Depth with door at 90° | 35.13" (89 cm) |
| Capacity | 1.2 |
| Door | Stainless Steel |
| Cabinet | Gray |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 12.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 87.0 lbs. (39 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101108131 |
|
Microwave
|
|
| Type | Drawer |
| Wattage | 1000.0 |
| Controls | Digital |
| Digital Display | Yes |
| Specialized Cooking Buttons | Yes |
| Cutout Height | 14.81" (38 cm) |
| Cutout Width | 28.44" (72 cm) |
| Cutout Depth | 23.5" (60 cm) |
| Interior Height | 7.75" (20 cm) |
| Interior Width | 16.13" (41 cm) |
| Interior Depth | 16.75" (43 cm) |
FEATURES

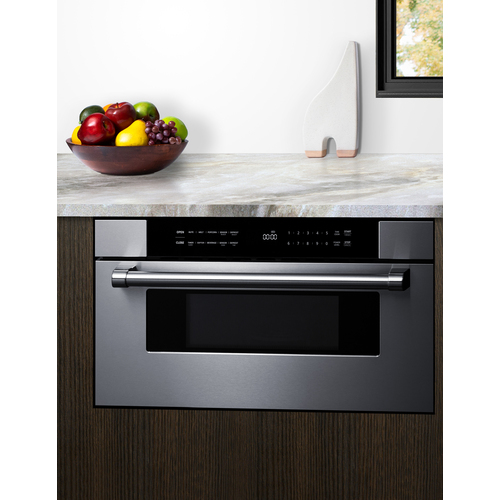

Built-in microwave oven designed for installation under the counter or in wall openings
1.2 cu.ft. interior offers spacious cooking space for medium to large dishes
Sized to fit 14 13/16" H x 28 7/16" W x 23 1/2" openings
Easy-to-use touch controls to access the microwave with minimal effort

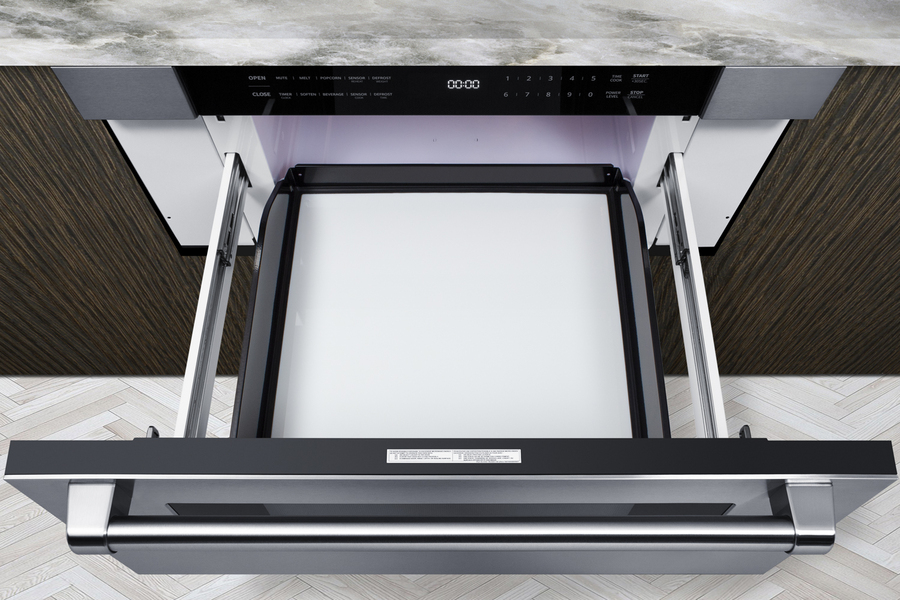

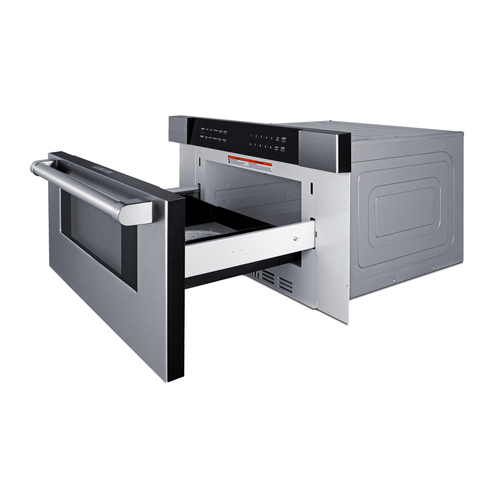

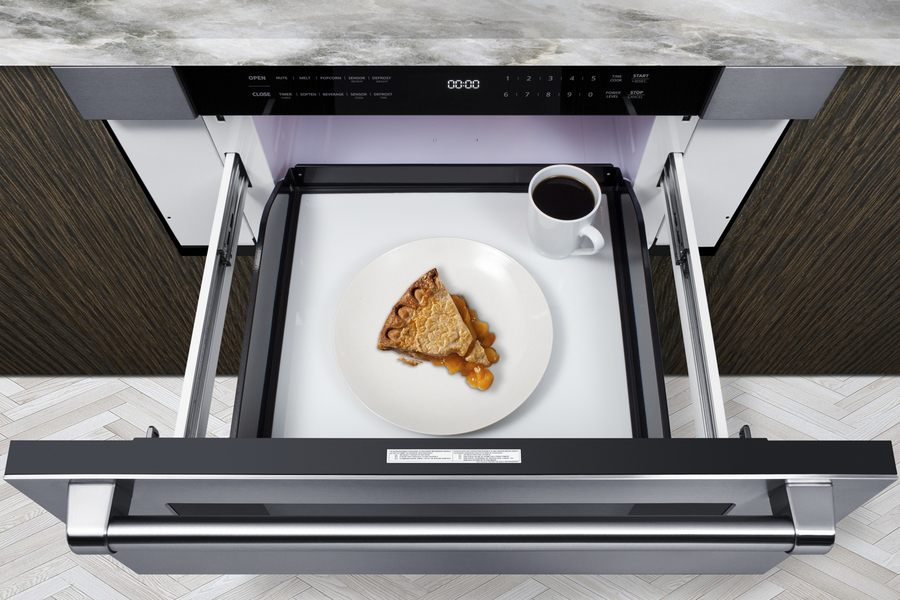

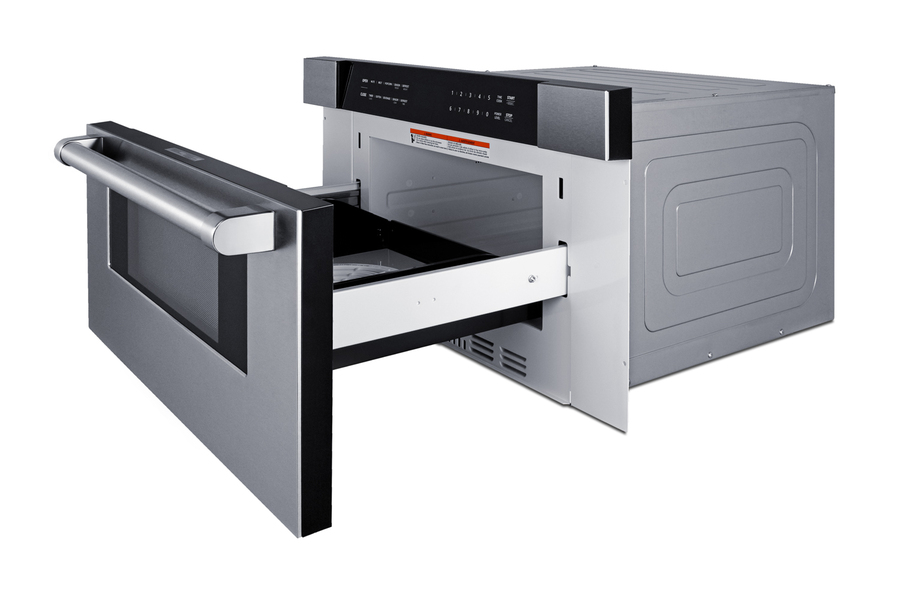

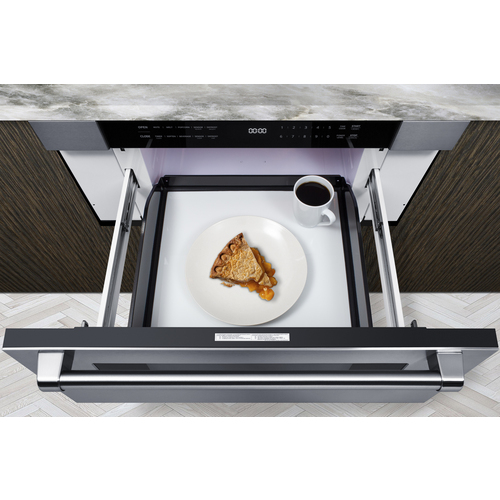

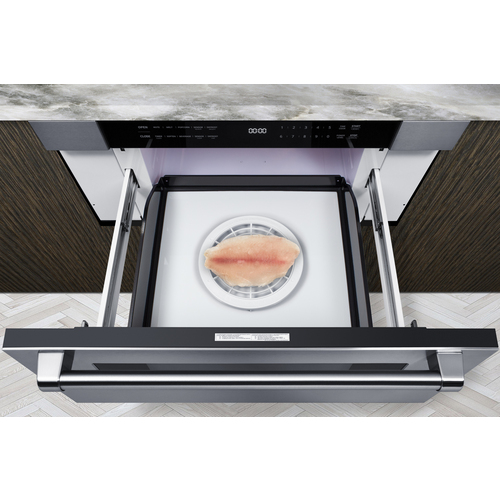

Slide-out drawer design provides an overhead view that lets you check your food without removing it from the microwave, helping to reduce spills

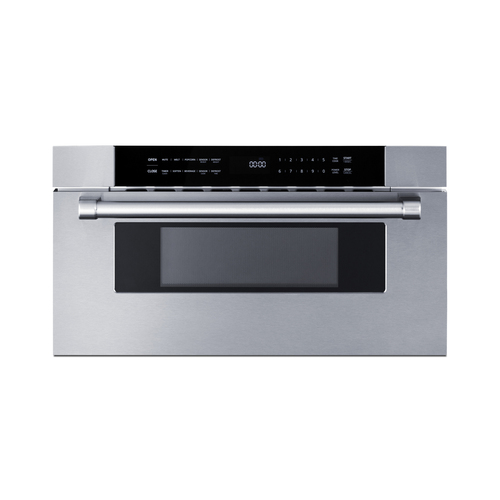

Modern look with a brushed stainless steel drawer finish in a horizontal grain to match other pieces

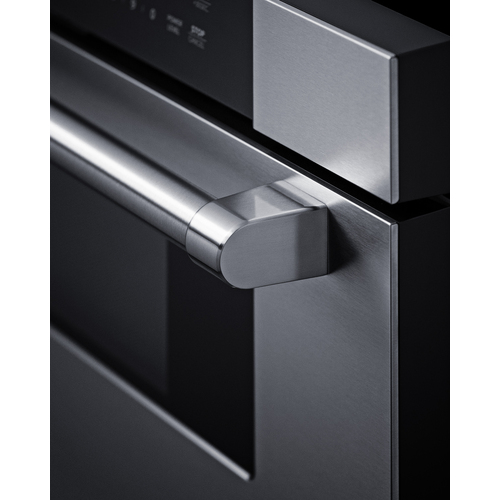

Thick 1 1/4" diameter in brushed stainless steel adds a touch of luxury to your space

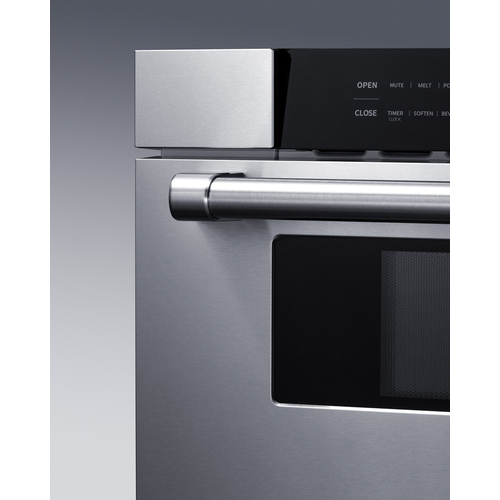

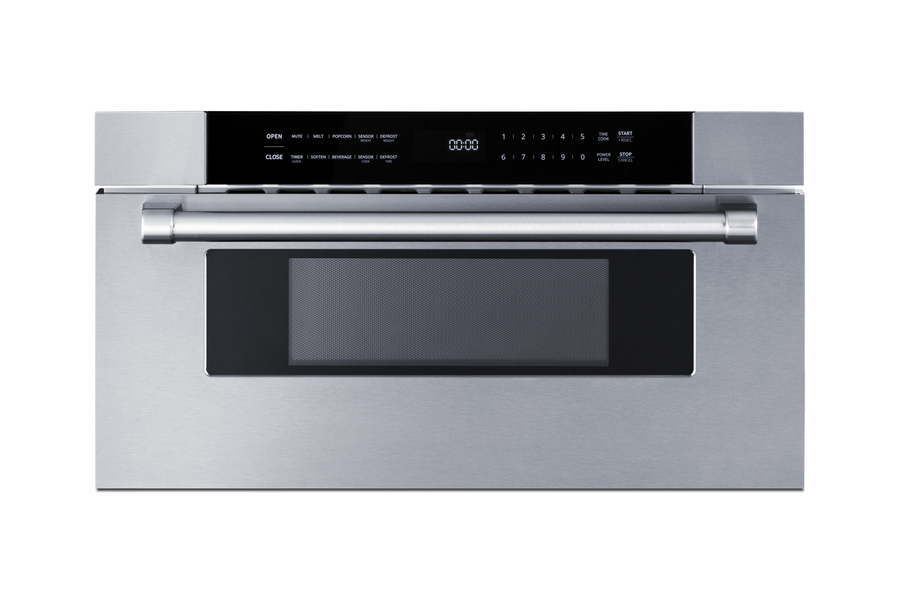

Control panel is set at a slight upward angle, making it easier to read all cooking functions
Includes buttons for popcorn, beverages, melting, and softening
10 power levels of allow you to find the proper heat settings for every dish
"Melt" setting lets you choose from commonly melted items (buter, chocolate, cheese, or marshmallows) and "soften" lets you choose from butter, ice cream, or cream cheese
Program up to 2 cooking sequences to achieve the proper heating results
Defrost by weight or time to best suit your cooking needs
One-touch setting lets you add 30 seconds at the same cook setting
Setting allows you to view a digital readout of the time or timer countdown
Automatically sets the appropriate cooking time by sensing the moisture level of the food being cooked
An audible signal lets you know when the cooking time is complete
Setting allows you to disable the end of cycle alert
Setting reduces reduces stand-by power by turning off the display when the unit is not in use
Control lockout setting lets you protect the microwave from accidental changes

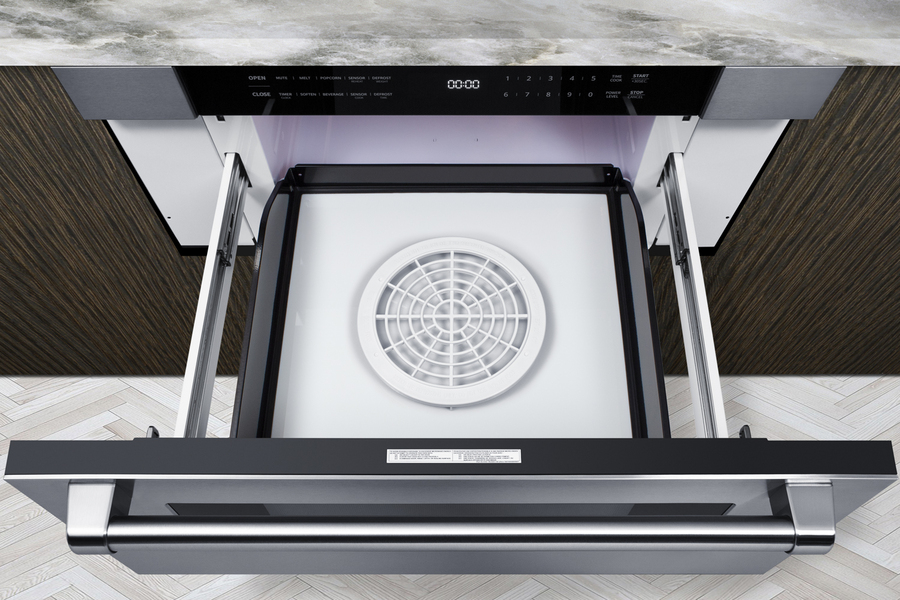

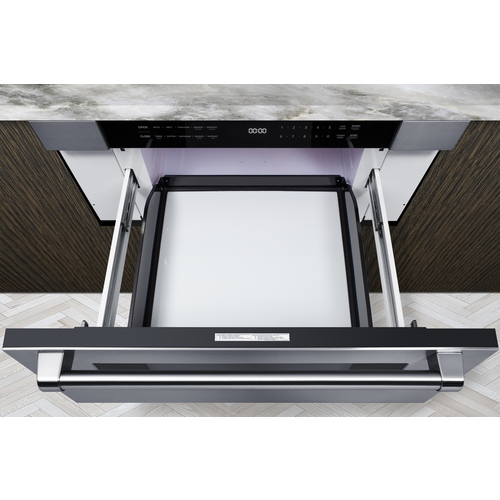

Interior light will remain on when the drawer is open, making it easier to see your progress in the clean white interior
Includes a pre-installed right angle NEMA 5-15 plug on a 54" long cord
Accessible design to conform to the Americans with Disabilities Act when installed according to the guidelines
Limited 1-year parts and labor
DESCRIPTION
Summit's innovative one-touch drawer microwave brings modern style and complete functionality under the counter. The MDR30SS is a 1.2 cu.ft microwave drawer sized at 30" wide. With one-touch open and close buttons, users have easy access paired with the top-loading design, which lets you monitor your cooking progress from the perfect position. The control panel is set at a slight angle, making it easier to keep the settings in full view from any position. The unit's interior features a crisp, clean white interior and a standard light for added safety when removing hot items. The MDR30SS has user-friendly features and 10 convenient power levels that let you select the right conditions for any meal. The "defrost by weight" setting helps to ensure a more efficient thawing process. Additional functions include a +30 seconds setting, popcorn button, beverage button, and melt + soften settings that lets you achieve the best conditions for butter, cream cheese, chocolate, or ice cream. This unit has an audible end-of-cycle buzzer, which can be disabled if you prefer a quieter operation. An energy-saving eco mode, child lock, and digital clock with a timer are also included. We've designed the MDR30SS to fit inside traditional 30" wide cabinet openings (recommended cutout: 14.81" H x 28.44" W x 23.5" D). The drawer front comes in a brushed stainless steel finish with a horizontal grain and large window in dark glass. A professional style handle with a 1 1/4" thick diameter completes the luxurious look. In addition to this built-in drawer microwave, Summit manufactures other integrated appliances, including gas and electric wall ovens, wine cellars, and single-drawer refrigerators. Browse our full selection to explore your options.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
