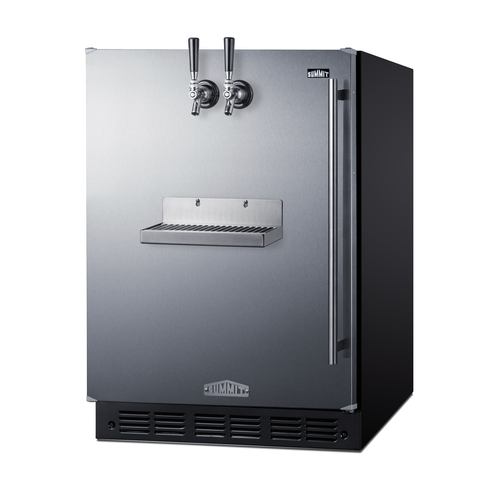

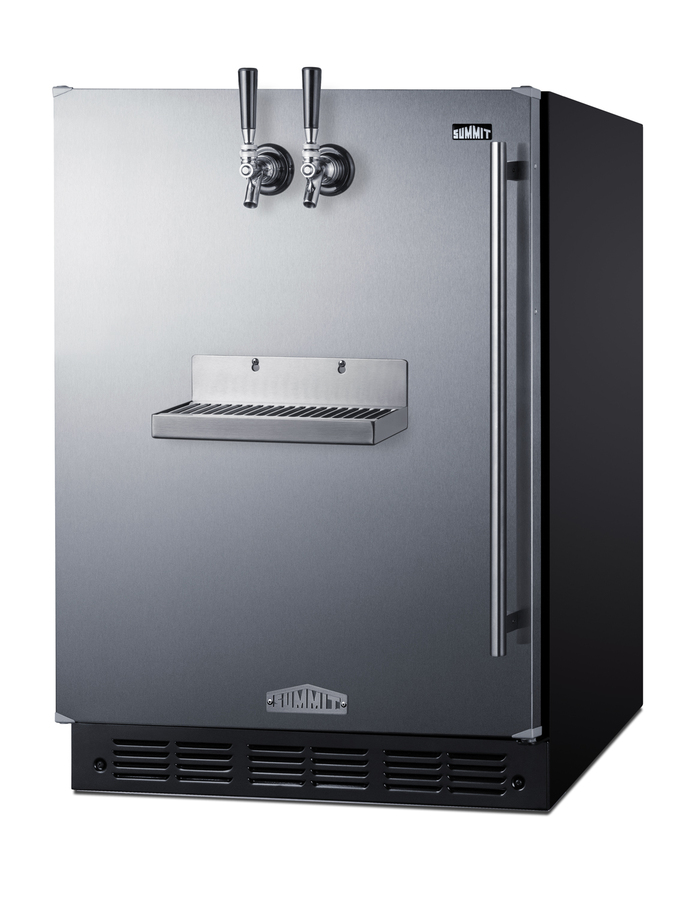

24" Wide Front Tap Built-In Cold Brew Coffee Kegerator, ADA-Compliant
2 to 4 days
(81cm H x 60cm W x 70cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.88" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 28.0" (71 cm) |
| Depth | 27.38" (70 cm) |
| Depth with door at 90° | 51.88" (132 cm) |
| Capacity | 5.3 cu.ft. (150 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 293.0kWh/year |
| Amps | 0.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145549 |
|
Kegerator
|
|
| Door Swing | LHD |
| Height Adjustable | Yes |
| Tap Kit | Yes |
| Number of Taps | 2 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Refrigerant | R600a |
| Refrigerant Amount | 0.64 oz. |
| Inter Height | 27.75" (70 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs Qty | 4 |
| Temperature Range | 36 to 46°F |
AVAILABLE UPGRADES
| Lock | ||
|---|---|---|
|
||
| Exterior | ||
|
FEATURES

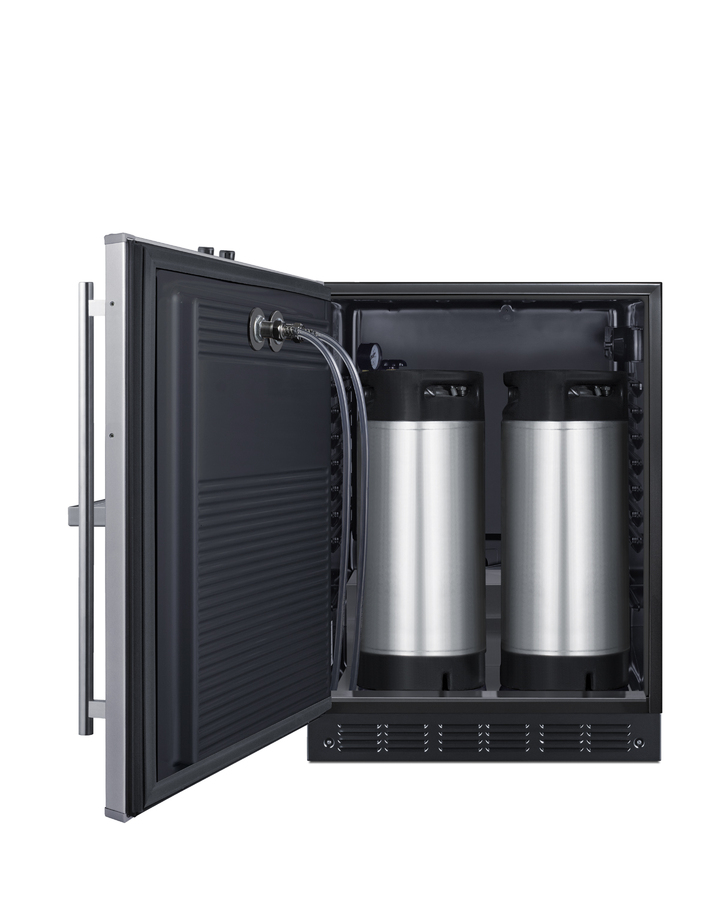

Kegerator includes front taps accessed via the door and includes all of the equipment needed to serve coffee from two sixtel kegs
Unique design requires no alterations to your countertop, freeing up valuable countertop space

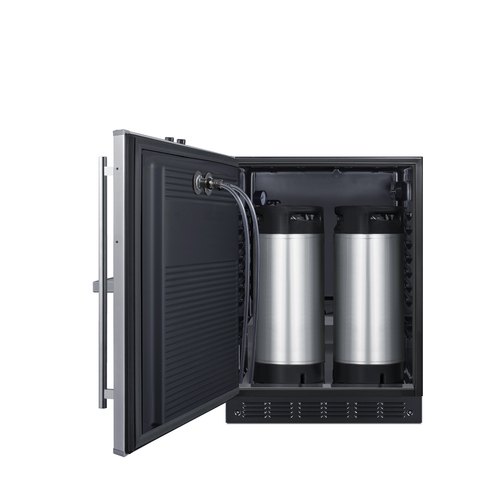

Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs

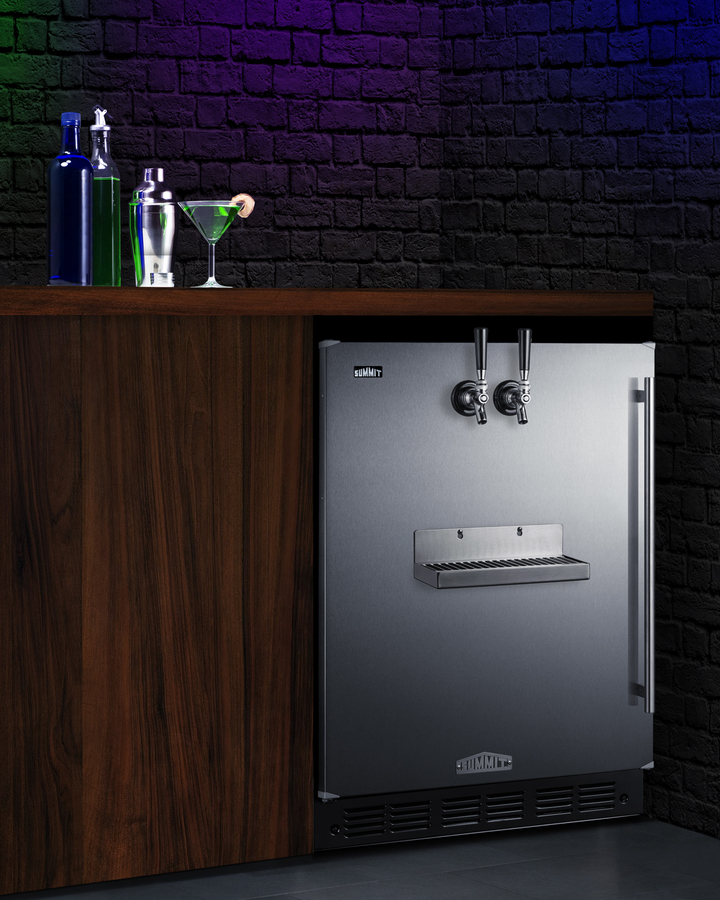

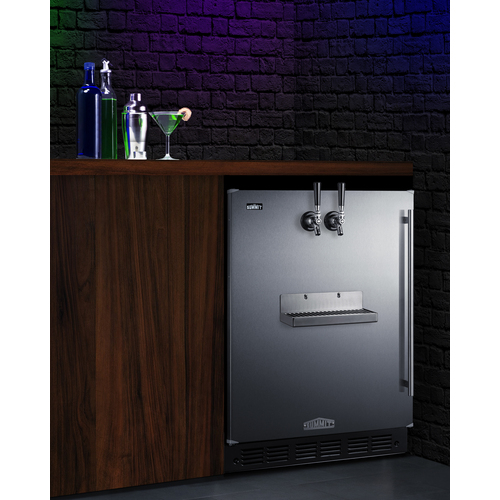

Designed for installation under the counter

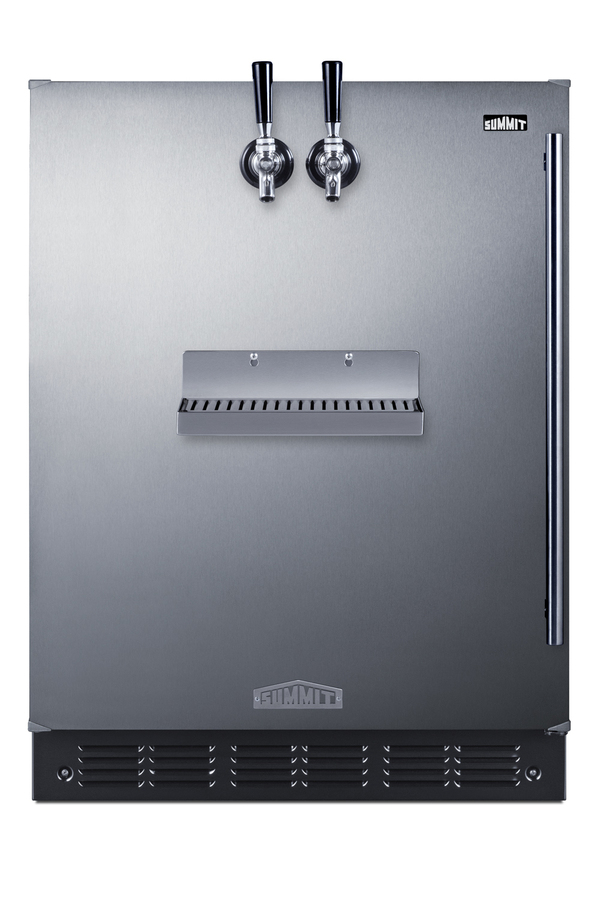

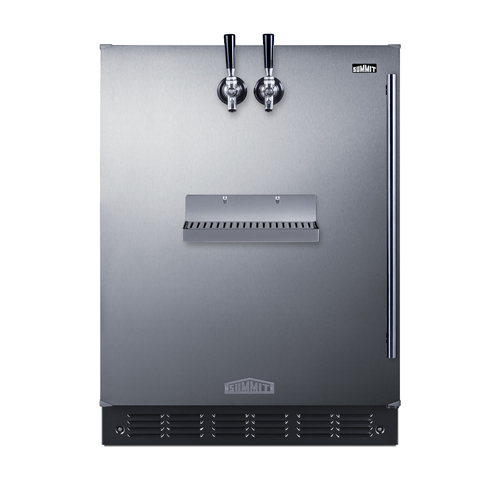

Taps are located on the front of the door, requiring no added reach
Sized at 32 inches high for installation under lower ADA-compliant counters
ETL-S listed to ANSI-NSF Standard 7 for commercial use
Approved for both residential and commercial settings
Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and the needed connection hardware.
Full-sized cannister ships with tapping equipment (ships empty)
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
No-frost operation for minimum user maintenance
Simple and intuitive analog controls located inside for easy temperature management
Interior includes steel cover to protect the floor when loading kegs

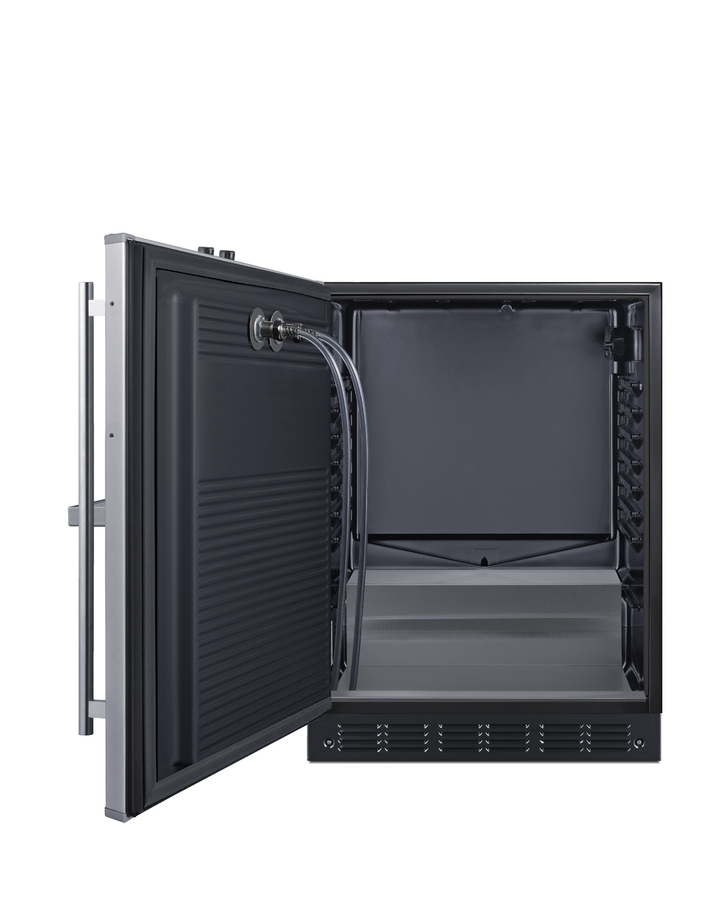

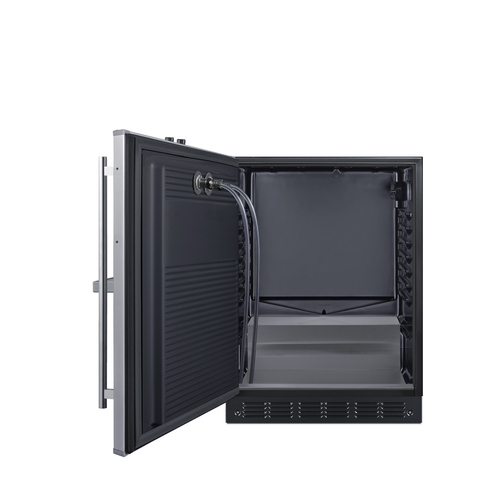

Cold wall design with hidden evaporator creates a seamless, easy to clean interior

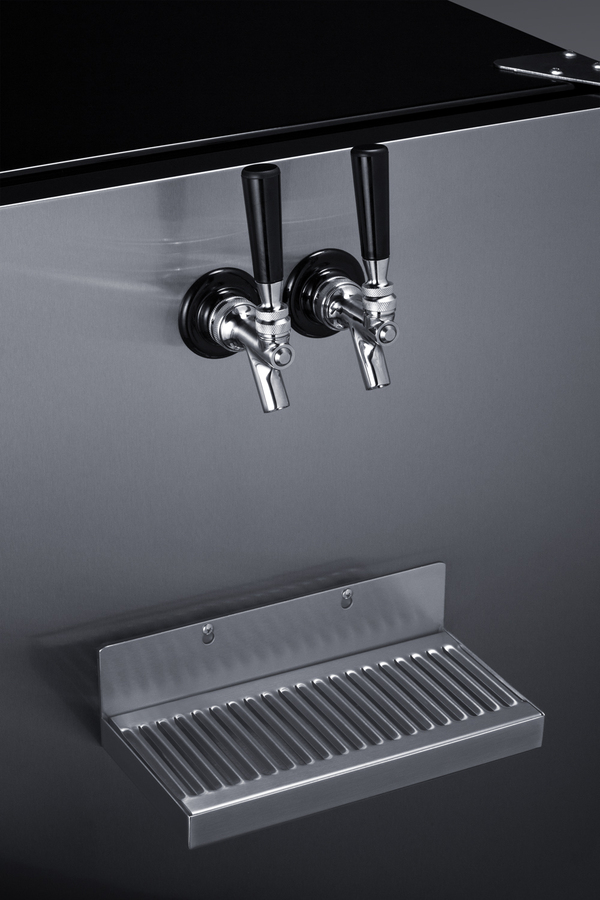

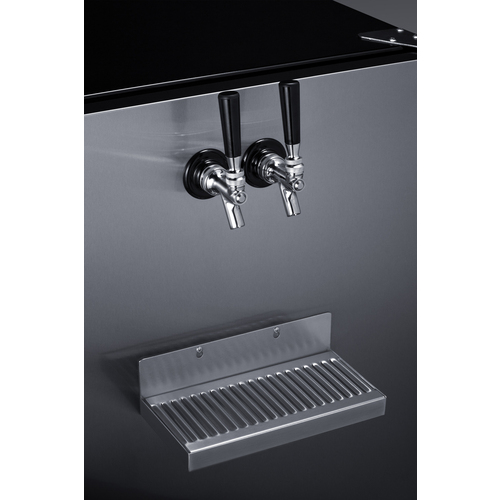

Front-mounted two-piece drip tray included for added convenience that can be easily removed for better cleanability
Vertically-mounted handle bar in stainless steel
For this unit with a standard right hand door swing, see model SBC7BRSFRTPADA
Allows the dispenser to be used freestanding
Refrigeration unit constructed in Europe then designed and modified in the USA
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit's innovative series of commitment-free built-in kegerators offers maximum convenience, eliminating the need to make alterations to countertops while still keeping easy access to cold brew coffee on tap in commercial and residential settings. The SBC7BRSFRTPCFADALHD is unique because the twin taps are accessed via the unit's front door. The specialized design frees up valuable counter space in kitchens, home bars, coffee shops, and eateries with limited room. The kegerator can be installed under a counter without the need to modify the countertop with a hole for the draft tower. The front tap system also creates a more accessible kegerator experience. This kegerator ships fully assembled and includes a removable stainless steel drip tray that mounts on the door below the taps. Its commercial grade tower has two faucets serving cold brew coffee from two 1/6 (sixtel) kegs. We also include a CO2 tank, regulator, and all the equipment you need to confidently serve perfectly chilled cold brew coffee on tap. Sized with a 24" footprint, this is a versatile front tap cold brew coffee dispenser that is ETL-S listed to NSF-7 standards for use in commercial environments, as well as residential settings. At just 32” high, this unit is ideal for built-in installation under lower ADA compliant counters. The stainless steel door and full-length handle provide an attractive look. The SBC7BRSFRTPCFADALHD features a modern black interior liner and stainless steel floor, providing added protection when loading kegs. The interior light, with an on/off rocker switch located behind the dial thermostat, ensures visibility and convenience. Classic mechanical controls guarantee an intuitive, trouble-free performance without any internal boards or chips. The automatic defrost system reduces user maintenance, while our signature cold wall design ensures an efficient, reliable cooling system. In addition to this dual tap kegerator, our commitment-free line also includes choices that dispense beer, as well as model SBC7BRSFLTWADA which features our innovative floating tap design. Summit also manufactures similar kegerators in standard heights and for outdoor applications. Browse the full Summit product line or contact our product specialists to find the fit for your needs.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
