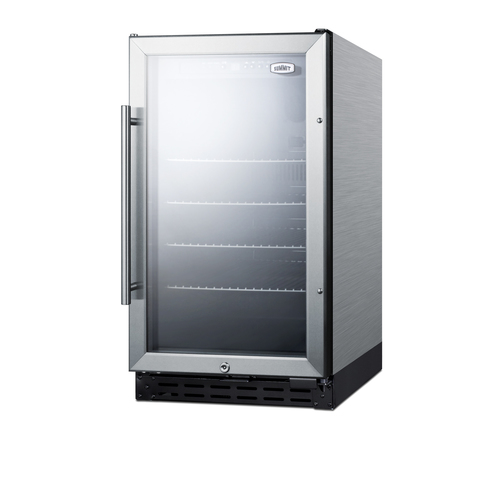

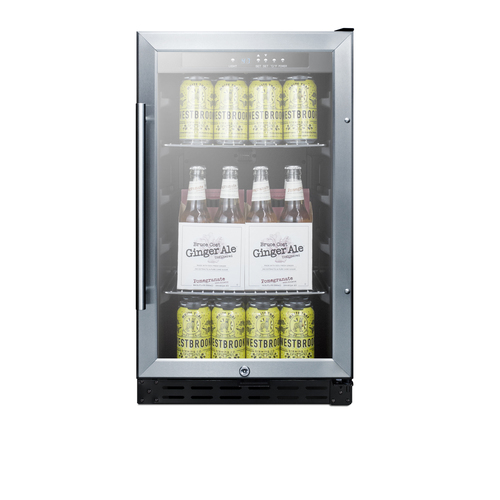

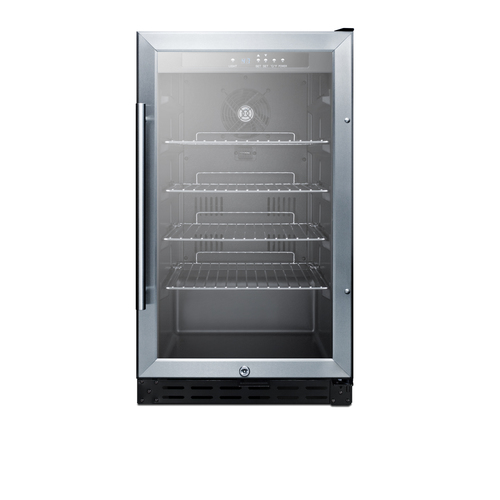

18" Wide Built-In Beverage Center, ADA Compliant

SKU: SCR1841BCSSADA

Front-breathing design allows built-in installation under the counter in 18" wide spaces

Estimated Time to Ship:

3 to 5 days

Find a dealer

Height:
Standard ADA

Cabinet:

*Additional features may vary

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

31.75" H x 17.94" W x 23.5" D
(81cm H x 46cm W x 60cm D)

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	31.75" (81 cm)
Nominal Width	18.0" (46 cm)
Width	17.94" (46 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Capacity	2.7 cu.ft. (76 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	284.0kWh/year
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	103.0 lbs. (47 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101050812
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Shelf Type	Chrome
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.06oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs Qty	2
Interior Light	Yes
Temperature Range	34º to 64ºF
Sound Level	34.2 dB
Dimensions
Interior Height	21.5" (55 cm)
Interior Width	12.75" (32 cm)
Interior Depth	4.5" (11 cm)
Compressor Step Height	4.75" (12 cm)
Compressor Step Width	12.75" (32 cm)
Compressor Step Depth	4.5" (11 cm)

Exterior

SSK - Stainless steel kickplate Stainless steel kickplate factory installed	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
LHD - Left hand door swing Door reversal to left hand swing	SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option

Door

T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings	T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint Reflective door tint in light blue finish for medium energy savings	T2 Door Tint Tinted door in reflective deep blue finish with high energy savings
T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings

Built-in capable

Make the best use of space by installing your appliance under the counter

ADA compliant

32" height is designed to fit under lower ADA compliant counters

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Stainless steel trimmed triple pane tempered glass door

Full display with a heat-safe glass door that keeps all stored items in view

Stainless steel wrapped cabinet

Fully wrapped stainless steel exterior cabinet for lasting durability

Factory installed lock

Keyed lock for a secure interior

Automatic defrost

Reduced maintenance with auto defrost system

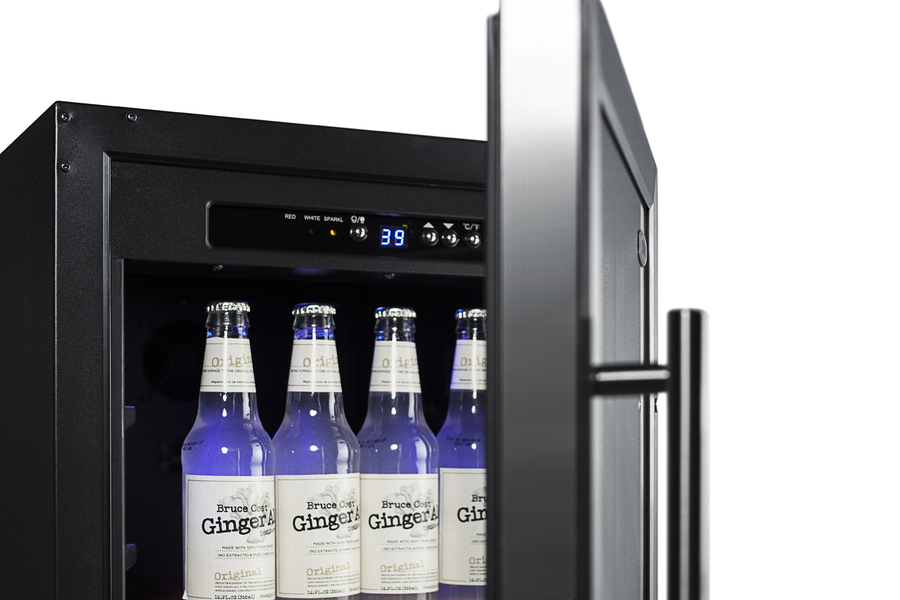

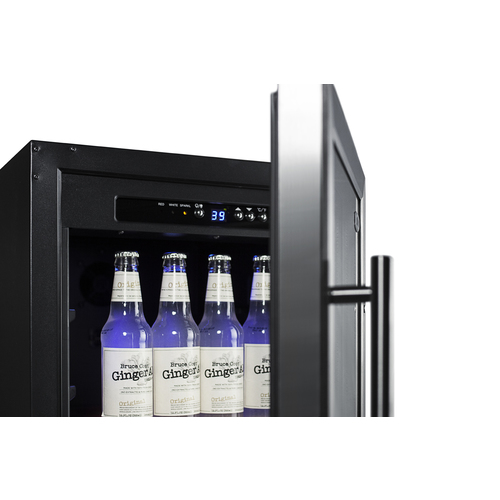

Digital thermostat

Electronic controls for precise temperature management.

LED lighting

Gentle illumination with an on/off switch

Adjustable chrome shelves

Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Flush back

Space saving design

Reversible door

User-reversible door swing allows for more flexibility in placing the unit

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's selection of built-in undercounter beverage coolers combines user-friendly convenience with elegant style for an ideal fit in any setting.

The SCR1841BCSSADA is an 18" wide all-refrigerator designed for use in residential settings. At 32" high, this unit is designed to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the fully finished cabinet also allows freestanding use. The reversible stainless steel trimmed door includes a factory installed lock and a professional style handle. This unit has a stainless steel wrapped cabinet and triple pane tempered glass door for heat-safe storage.

Items can be stored on four adjustable chromes shelves in the auto defrost interior, with attractive LED lighting providing an elegant display. The digital thermostat offers intuitive temperature management.

In addition to this unit, Summit offers a full collection of 18" wide ADA compliant choices, including single and dual zone wine cellars, refrigerators, and frost-freezers. Browse our website for more.

BROCHURE w/ DRAWINGS
SCR1841BCSSADA.pdf

TECHNICAL DRAWING (.dwg)
SCR1841BADA_BEVE._CENTER__A-C_2000_.dwg

USE & CARE
SCR1841B_Manual_3-29-2019.pdf

MSDS INFORMATION
R600a_K.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
