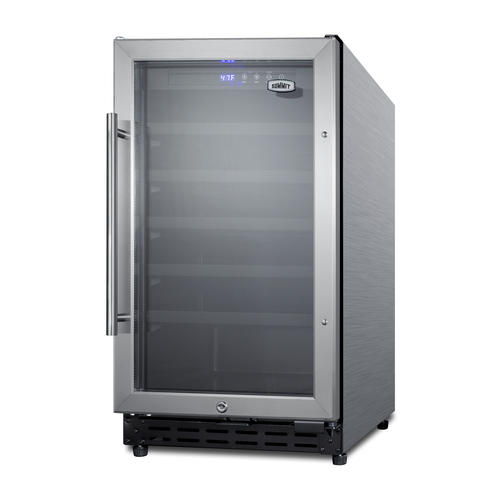

18" Wide Built-In Wine Cellar, ADA Compliant
3 to 5 days
All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
(80cm H x 46cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.38" (80 cm) |
| Nominal Width | 18.0" (46 cm) |
| Width | 17.94" (46 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Capacity | 3.3 cu.ft. (93 L) |
| Bottles | 34 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Stainless Steel |
| US Electrical Safety | CSA |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 103.0 lbs. (47 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101056210 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs | 4 |
| Temperature Range | 41º to 68ºF |
| Sound Level | 33.8 dB |
AVAILABLE UPGRADES
| Exterior | |||||
|---|---|---|---|---|---|
|
|||||
| Door | |||||
|
FEATURES
32" height allows installation under lower ADA compliant counters
Make the best use of space by installing your appliance under the counter
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

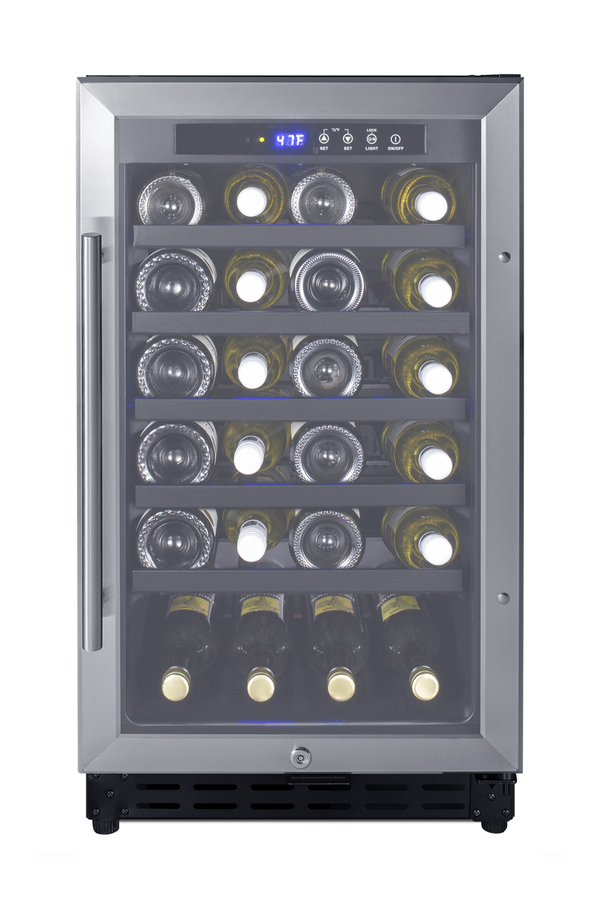

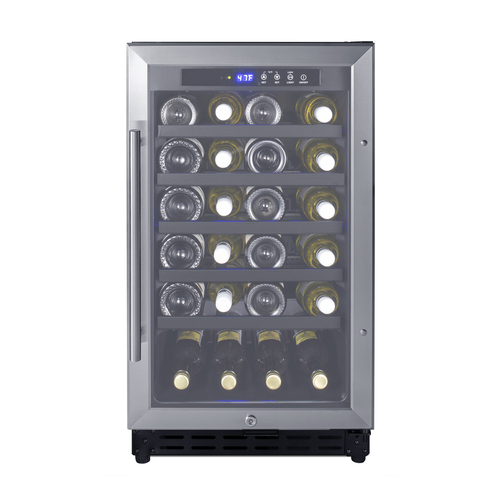

Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles
Stainless steel cabinet offers lasting durability and professional style

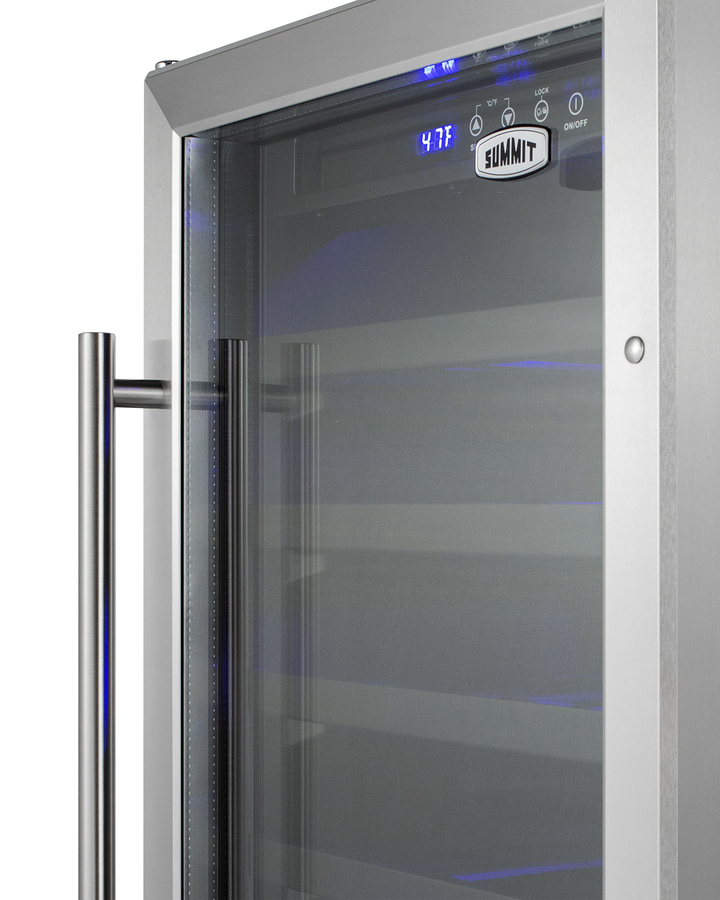

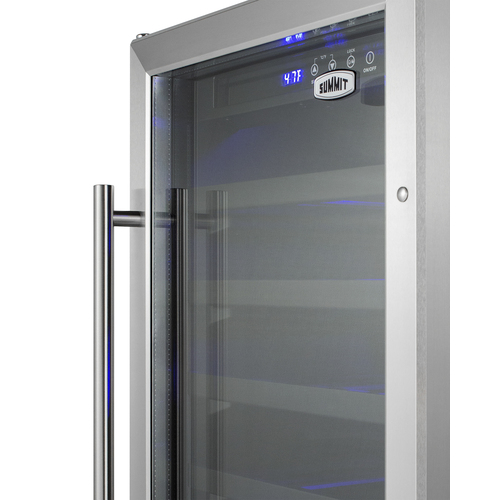

Curved stainless steel handle provides an easy grip with professional style
Keyed lock for a secure interior
Reduced maintenance with auto defrost system
Electronic controls for precise temperature management.
Gentle illumination with an on/off switch
5 shelves offer the perfect storage for wine bottles in a classic wooden finish
User-reversible door swing for added flexibility
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

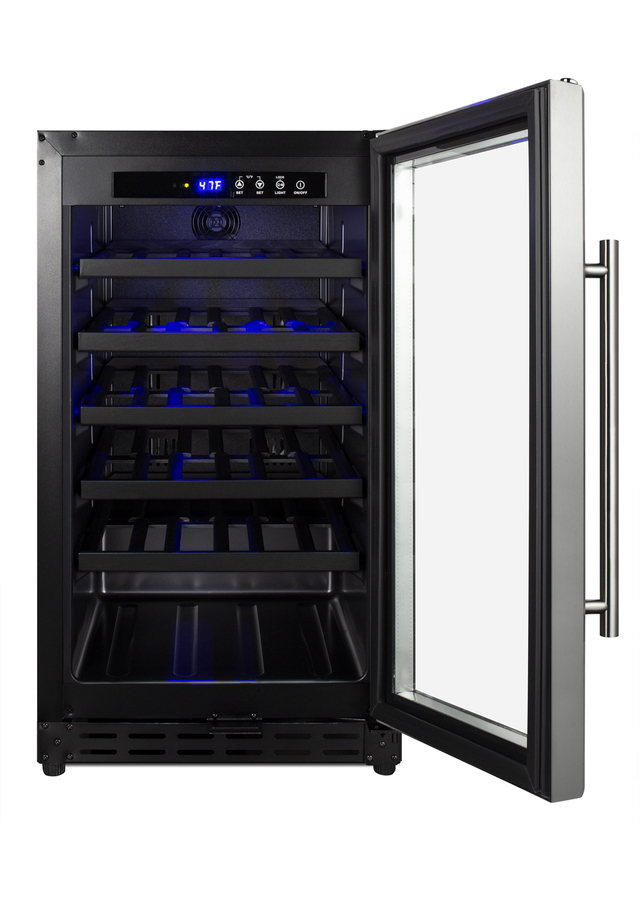

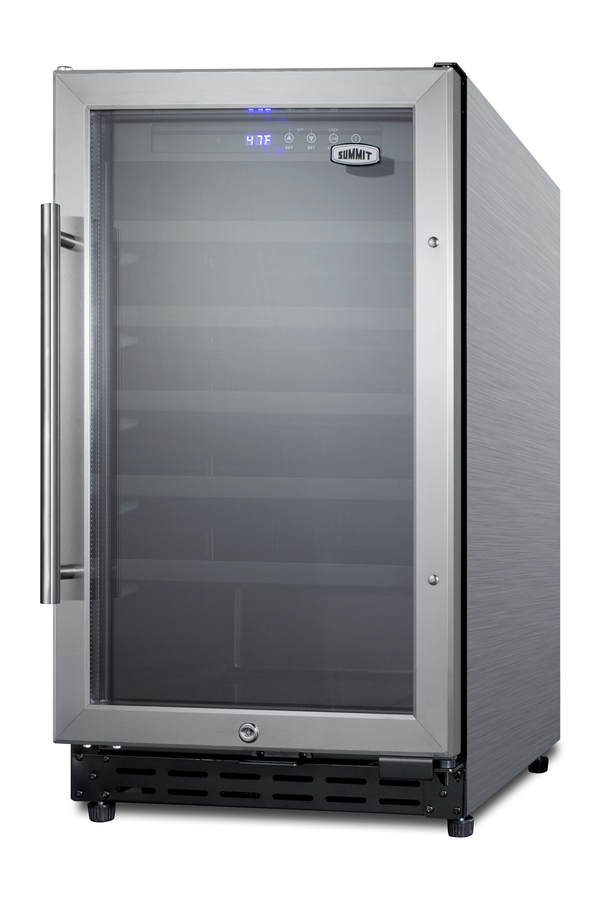

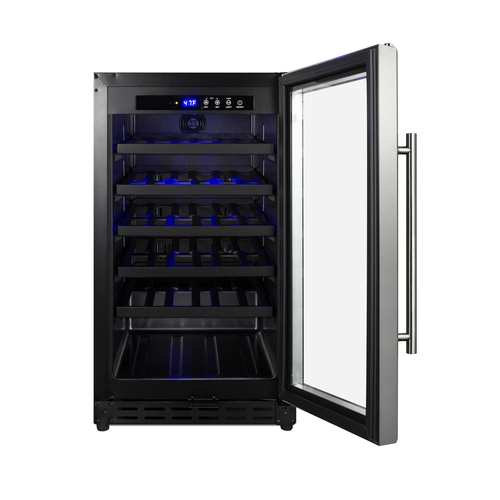

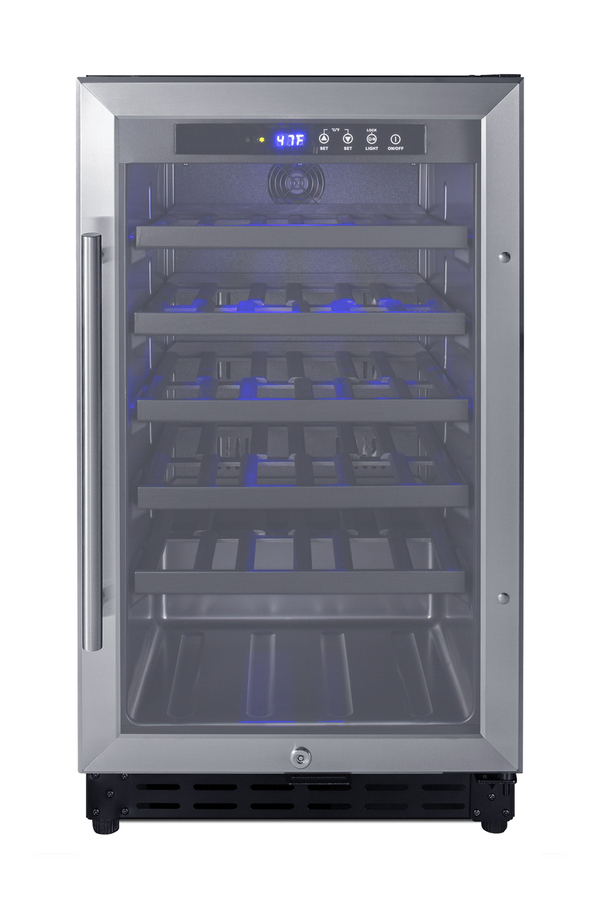

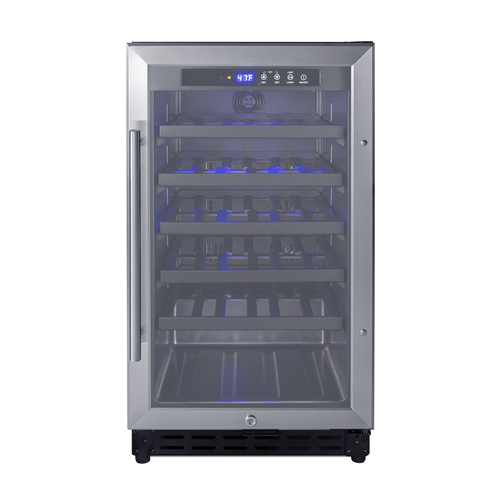

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style. The SWC1840BCSSADA is a 32" high wine cellar designed for built-in or freestanding use under lower ADA compliant counters, with a unique 18" width. The user-reversible glass door features attractive stainless steel trim and a pro style handle, with a factory installed lock for added security. This unit comes with a wrapped stainless steel cabinet. Inside, this auto defrost wine cellar can store up to 34 Bordeaux or Burgundy style bottles, with a slotted floor that can also accommodate champagne if needed. The slide-out wooden shelves come in a jet black finish for a modern look. Recessed LED lighting offers an elegant view of the items, while the digital thermostat ensures easy temperature management. With its slim fit and convenient design, the SWC1840BCSSADA makes an attractive addition to any room. For a matching beverage center, see the SCR1841BCSSADA.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
