24" Wide Induction Range
12/31/2024
(91cm H x 61cm W x 61cm D)
SPECIFICATIONS
Overview
|
|
---|---|

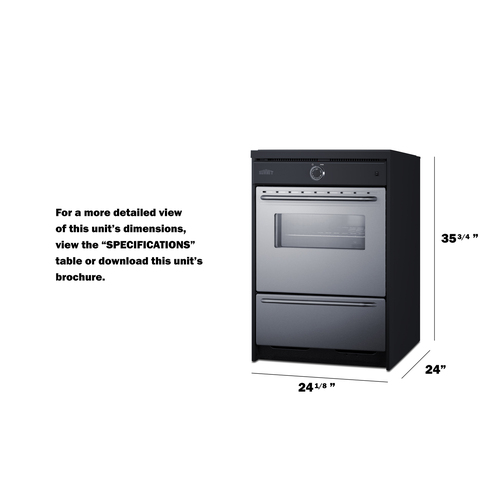

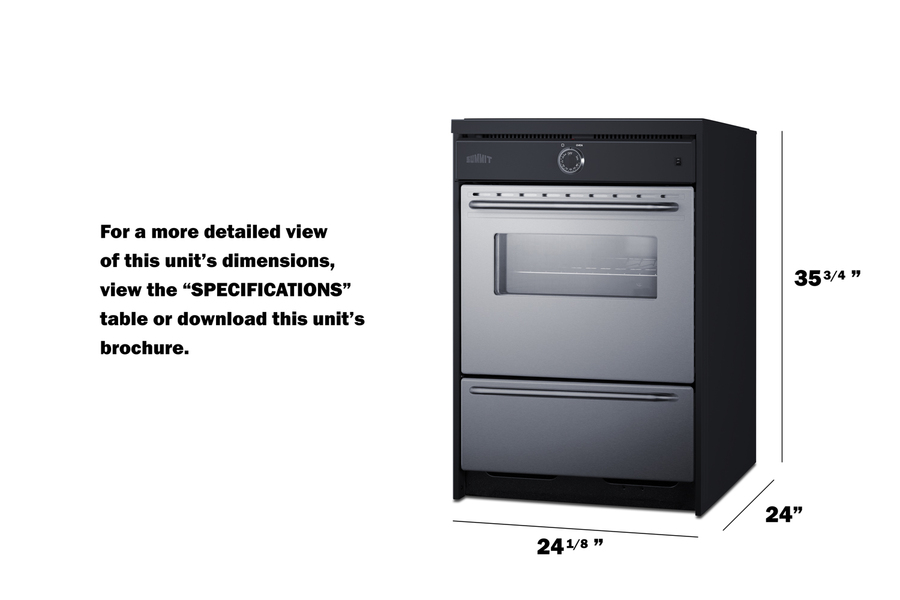

Nominal Height | 36.0" (91 cm) |
Height of Cabinet | 35.75" (91 cm) |
Nominal Width | 24.0" (61 cm) |
Width | 24.13" (61 cm) |
Nominal Depth | 24.0" (61 cm) |
Depth | 24.0" (61 cm) |
Door | Stainless Steel |
Cabinet | Black |
US Electrical Safety | ETL |
Amps | 40.0 |
Voltage/Frequency | 220 V AC/60 Hz |
Weight | 150.0 lbs. (68 kg) |
Parts & Labor Warranty | 1 Year |
UPC | 761101145983 |
Electric Range
|
|
Oven Capacity | 2.92 cu.ft. (83 L) |
Cooktop Surface | Glass |
Element Type | Induction |
Number of Elements | 4 |
Element #1 Size | 8.25" (21 cm) |
Element #1 Wattage | 2000.0 |
Element #2 Size | 6.25" (16 cm) |
Element #2 Wattage | 1500.0 |
Element #3 Size | 8.25" (21 cm) |
Element #3 Wattage | 2000.0 |
Element #4 Size | 6.25" (16 cm) |
Element #4 Wattage | 1500.0 |
Burner Controls | Digital |
Oven Controls | Dial |
Oven Light | Yes |
Cleaning Type | Manual |
Oven Rack Qty | 2 |
Oven Window | Yes |
Oven Interior Height | 14.0" (36 cm) |
Oven Interior Width | 19.0" (48 cm) |
Oven Interior Depth | 19.0" (48 cm) |
Individual Indicator Lights | Yes |
Storage Compartment | Yes |
Broiler Location | Inside Oven |
AVAILABLE UPGRADES
Exterior | ||
---|---|---|
|
FEATURES
Slim-fitting range with an electric oven and induction cooking surface for fast, safe, and efficient cooking
Designed and constructed domestically
Apartment-sized width offers all the functionality you need in a smaller footprint
Shallower fit is ideal for L-shaped and galley kitchens
Electromagnetic heating technology where heat is generated inside your cookware, ensuring a more efficient process with less energy waste, faster heating, and a safer cooking experience
8 1/4" elements in the front left and rear right operate at 2000W (with a 3000W capacity at the boost setting) for fast, powerful heating
6 1/4" front right and rear left elements operate at 1500W (or 2000W using boost) to cover most general cooking needs
Largest elements are located diagonally, with maximum spacing to allow large cooking vessels in use simultaneously
Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
Keep pots and pans inside the lower drop-down compartment for easy space-saving storage
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
Oven and storage compartment include an easy-grab towel bar handle in brushed stainless steel
Smart design limits the depth and protects adjacent cabinets

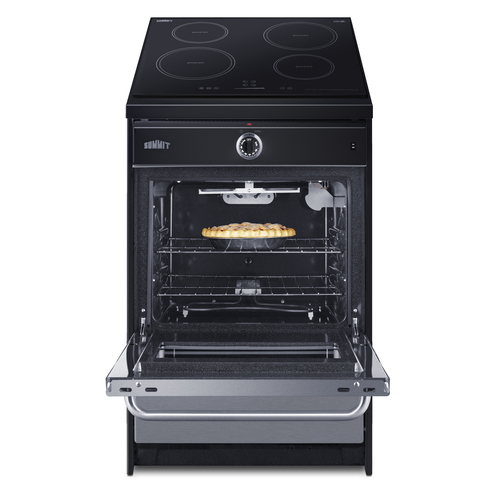

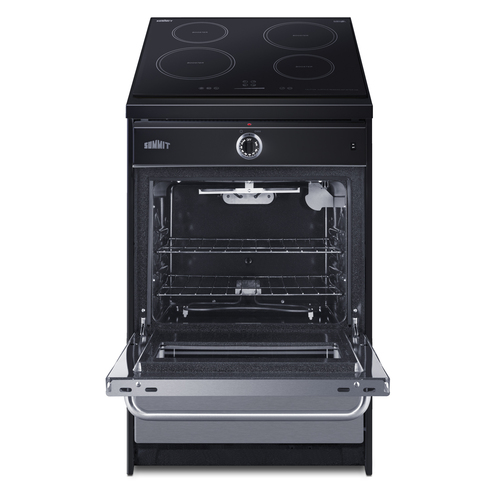

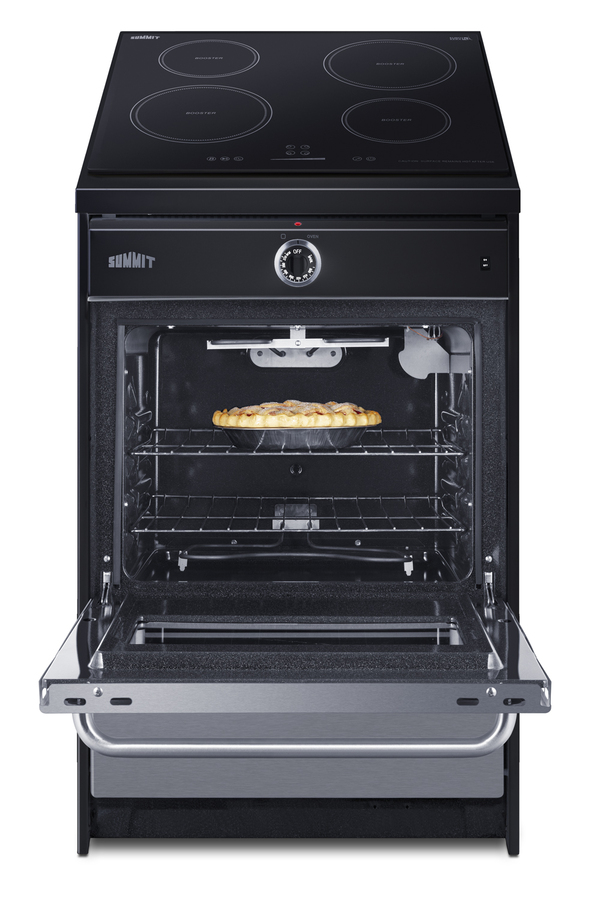

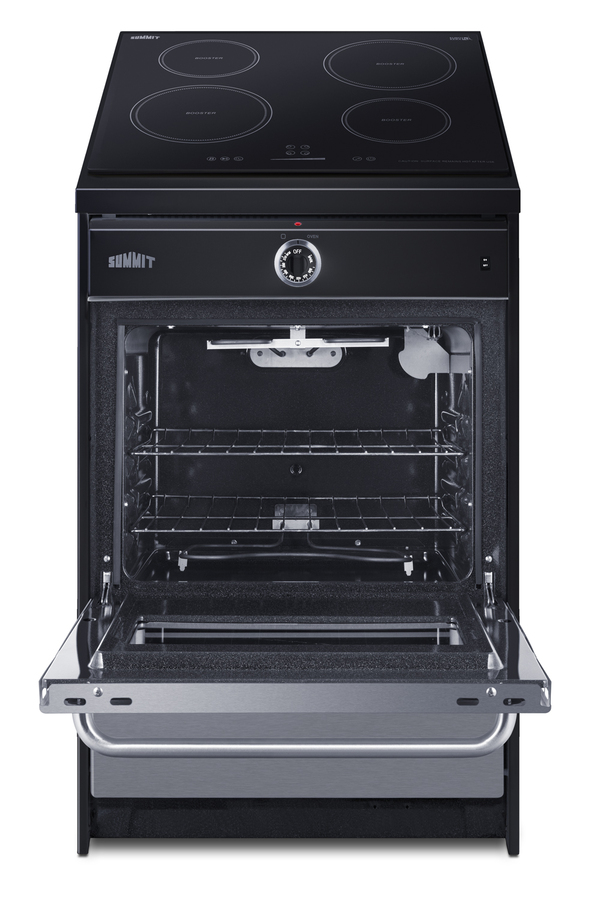

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Solid construction built to hold up to everyday use

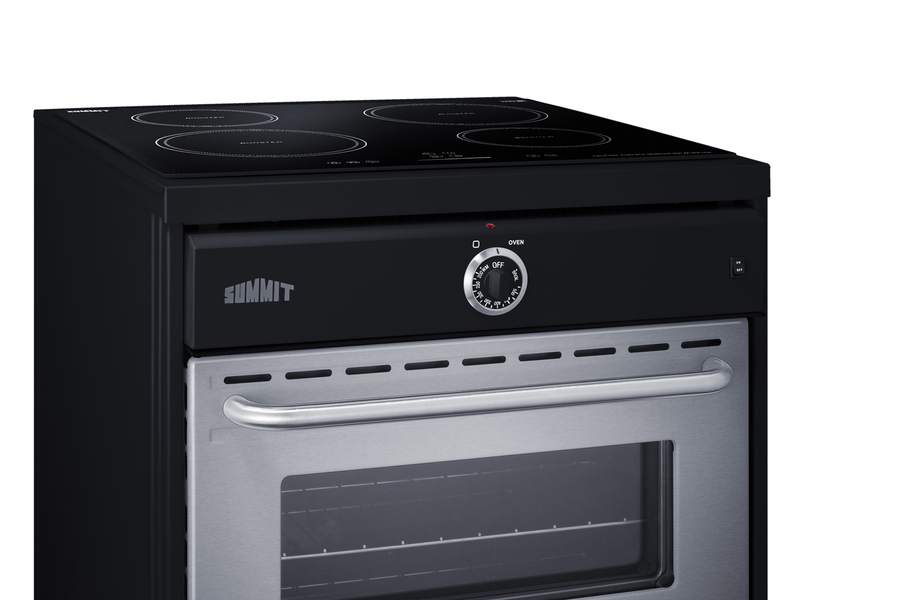

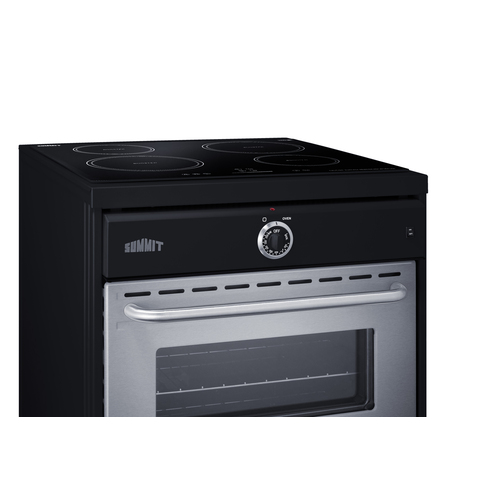

Oven knob and cooktop controls are located upfront, ensuring you won't have to reach over a hot surface to make heating adjustments
Control panel includes an 'on' light for the oven and burners for added safety when using the range
Indicator shows when the surface is still hot to touch
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

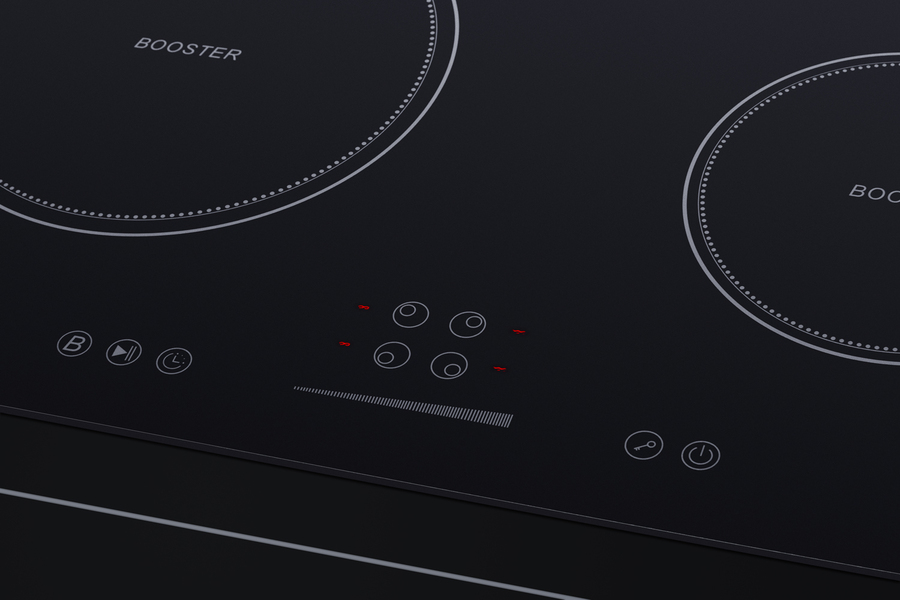

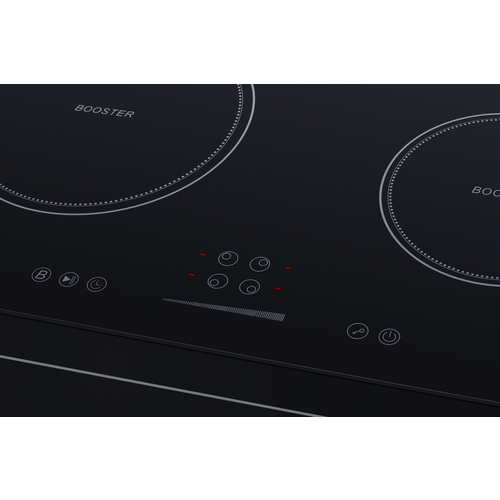

All cooking zones include a "boost" function that lets them operate at a higher setting for up to 5 minutes, ideal for reducing cook time when boiling water
Power will automatically shut off if boiling liquid or a wet cloth touches the control panel
Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up
Two-piece porcelain broiler tray with grease well
Included for user installation to help prevent tipping
Approximately 85% of the stovetop heat created goes directly towards heating cookware contents
Doors are constructed from brushed stainless steel for true luxury built to last in busy kitchens
Upfront controls offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
Compatible with standard 40 amp 3 or 4-wire range cords
DESCRIPTION

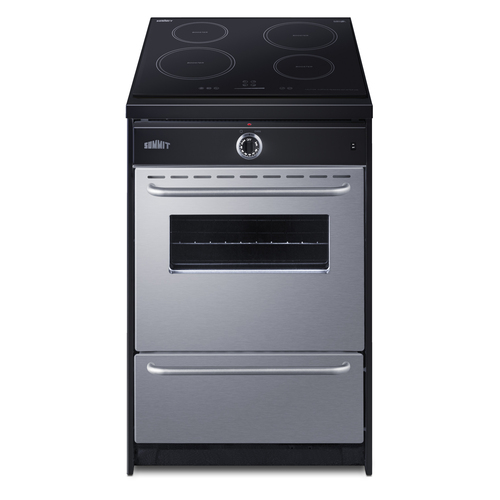

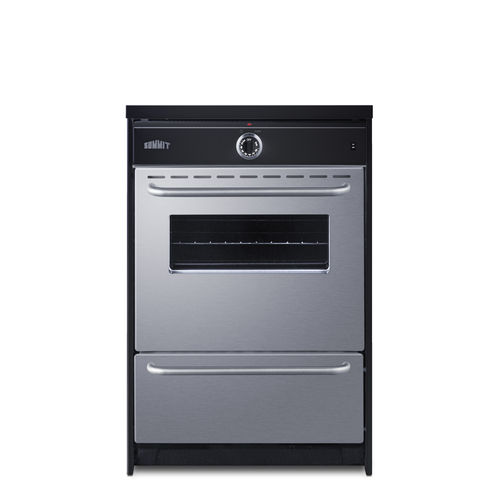

Enjoy the ease, speed, safety, and efficiency of induction cooking with Summit Appliance's new series of 24" wide induction ranges, made in the USA. Model TEM665BW brings precise and efficient cooking to smaller kitchen spaces with a 24" footprint. The cooking surface features four induction zones, while the large electric oven offers nearly 3 cu.ft. of cooking space for baking and broiling. This unit comes in a stainless steel finish and no rear backguard for a slide-in look. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. A towel bar handle in brushed stainless steel provides an added touch of style to the oven door. This range requires professional installation with a standard 40 amp 3 or 4-prong cord. Unlike radiant heating, induction technology utilizes magnetized energy that starts inside the cookware, meaning the temperature of the actual cooktop surface does not get nearly as hot as traditional gas or electric elements. Most of the heat is retained inside your cookware, making induction technology the most efficient heating method for your kitchen. The surface is constructed from smooth EuroKera black glass to create a modern, easy-to-clean surface. The front left and rear right elements are sized at 8 1/4", ideal for boiling large pots of water or cooking with woks and other large cookware. They can function at a maximum of 3000W for up to 5 minutes when using the "booster" setting, or 2000W during regular operation. The 6 1/4" rear left and front right elements reach 2000W at the booster setting, or 1500W in normal operation. The smart burner layout helps provide plenty of room so that larger cooking vessels are spaced apart, making it easier to use all four elements without cookware colliding. Touch controls allow intuitive operation. The digital display shows which elements are in use and their power setting. Audible beeps sound when the touch controls are activated. A timer function lets you program a power level and cook time (up to 99 minutes) that can either turn the unit off when complete, or serve as a visual countdown with an audible alert when the set time has been reached. Safety features include automatic shutdown, child lock, overheat protection, and overflow protection, which will temporarily disable the power if boiling liquid touches the control panel. This model's oven includes an interior light and window to keep your cooking in view. Two adjustable racks make it easy to accommodate a variety of sizes. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. Under the oven is a lower drop-down compartment ideal for storing cookware complete with an attractive stainless steel towel bar handle. Summit's American-made induction ranges are ADA compliant, with the cooktop controls located upfront and the oven knob centered on the front manifold for easy and accessible use. With its slim fit and safety-conscious design, this series is perfect for apartments, senior living, ADUs, and other kitchens with smaller footprints. Additional choices are available in jet black (TEM665CW) and white (WEM665W), as well as traditional coil and radiant stoves in this size. Browse the full Summit collection for more choices.
